Volvo S40 / V40 White Engine 4cyl Fuel Rail (Including AN6 or AN8 Rail Fittings)

THIS IS A SPECIAL ORDER ITEM AND MAY TAKE 1-2 WEEKS DELIVERY

MALE/MALE ORB-8 TO AN6 OR AN8 FITTINGS ARE INCLUDED BY GROUP-D IN YOUR ORDER

Nuke Performance fuel rail for the Volvo 4cyl white engine found in first generation S40 and V40, oversized internals, lightweight design, and equipped with our unique injector safety clips.

The Volvo 4cyl White Engine fuel rail is delivered with brackets for the OEM Volvo intake and allows you to go with AN fuel lines and aftermarket injectors for your Volvo engine.

 Lightweight fuel rail that fits Volvo 4cyl white engine
 To be used with Bosch EV14L type injectors *
 AN-8 ORB threads in both ends enable a high fuel flow
 Delivered with brackets for easy mount to the OEM intake
 AN-6 ORB side outlet/inlet for optional applications
 Safe for all types of fuels, including alcoholic fuels such as E85

* This fuel rail is made to be used with EV14L (Long) 65mm injectors, when using other injectors the included brackets can not be used.

The Nuke Performance's newest generation of fuel rails grants an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that fuel rails from Nuke Performance have become famous for, which grants a leakproof seal even during a crash where the fuel rail would get torn out of the intake manifold.

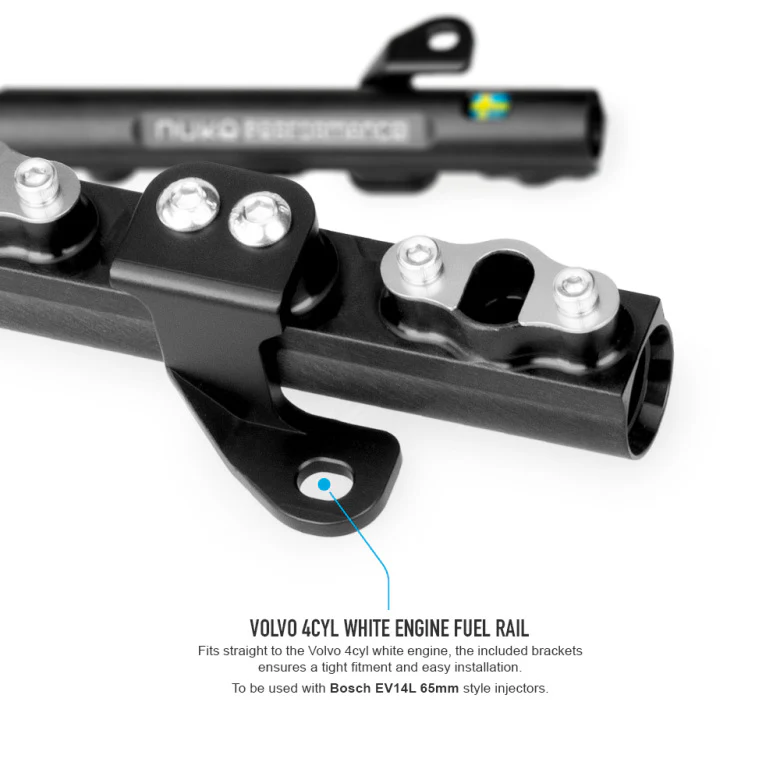

 Perfect fitment for a Volvo 4cyl white engine, delivered with the needed hardware to mount to the intake.
The Nuke Performance Volvo 4cyl White Engine fuel rail is delivered with brackets for the 4cyl S40 and V40 engine. The fuel rail is equipped with brackets that fit the following models and years:
 S40 / V40 1.8 16V 1995-1999
 S40 / V40 1.9 T4 1997-2003
 S40 / V40 2.0 1995-2000
 S40 / V40 2.0T 1998-2004



 AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters to choose from.
The fuel rail uses AN-8 ORB threaded fittings for each end and also offers an additional side port with AN-6 ORB thread. We offer a wide variety of fittings and our low-profile full-flow banjo fittings for a space-efficient installation.

 AN-8 ORB main ports and AN-6 ORB side port

The fuel rail is delivered with an AN-6 ORB Plug for the side port but the main port fittings are sold as accessories.

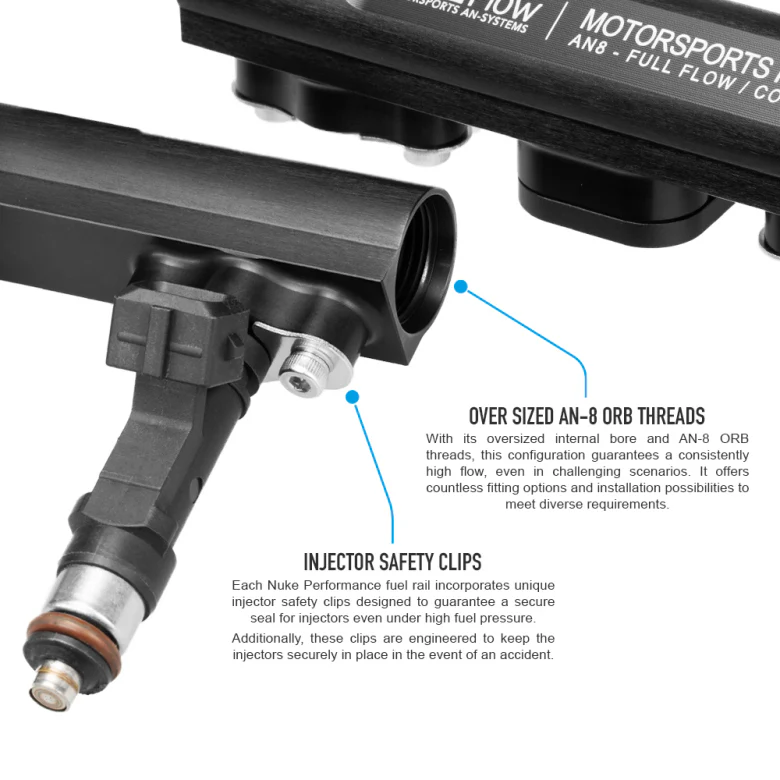

 All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
One distinctive feature of Nuke Performance is its use of injector safety clips, designed to uphold a flawless seal for injectors even under the strain of extreme fuel pressure.

 Ensures a safe and secure seal even during extreme fuel demands

Whether during assembly, engine installation or in the unfortunate event of an accident, these clips ensure the injectors remain securely attached to the rail. This design prevents any fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.



 Designed, and developed in Sweden, guaranteeing the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Volvo 4cyl White Engine fuel rail is of the highest possible quality and has the same hallmark as all the other lightweight motorsports products from Nuke Performance. The parts from Nuke Performance are co-developed with worldwide motorsports teams, making sure that functionality, as well as the design, meets the absolute highest standards, or even making its own standard.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

There is no substitute for the quality of Nuke Performance.

---

 Nuke Performance Volvo 4cyl White Engine fuel rail Specifications:
For more information about specifications, view the product sheet.

Delivered with brackets for	S40 / V40 1.8 16V 1995-1999 S40 / V40 1.9 T4 1997-2003 S40 / V40 2.0 1995-2000 S40 / V40 2.0T 1998-2004
Injector type specification	Bosch EV14 L style
End inlet/outlet threads	AN-8 ORB
Additional port thread	AN-6 ORB
Length	318.00mm (12.52")
Height	32.00mm (1.25")
Weight	291.00g (10.26oz)
Fuel compatibility	Petrol, Gasoline, Ethanol, E85, E100, Methanol
For motorsports use	YES
Replaces old part #	100-01-202 **
Part #	120-04-102
EAN	7340209507232

 * not included, make sure to select the needed fittings when placing an order
** old generation fuel rail with 3/4 UNF threads and did not include mounting brackets

 Nuke Performance Volvo 4cyl White Engine fuel rail includes:
1 x AN-8 ORB Full Flow fuel rail profile for Volvo 4cyl White Engine
2 x Aluminum brackets for Volvo White Engine
1 x AN-6 ORB Plug
4 x Nuke Performance Injector safety clips
8 x MC6S M4x6mm stainless steel bolts
4 x K6S M6x10mm stainless steel bolts



 The fuel rail is delivered without fittings and injectors, these need to be purchased as accessories.

 This fuel rail replaces our old Volo 4cyl S40/V40 fuel rail with part number 100-01-202, which is no longer available.
