Xtreme Performance SR20DET Twin Plate Clutch Kit Incl Flywheel

Product image 1

Xtreme Performance SR20DET Twin Plate Clutch Kit Incl Flywheel

Some items maybe not be carried in stock at Group-D
If stock is available in the European Warehouse delivery time will be around one week
If there is no European stock delivery time may vary
If you are concerned about delivery please contact us prior to order

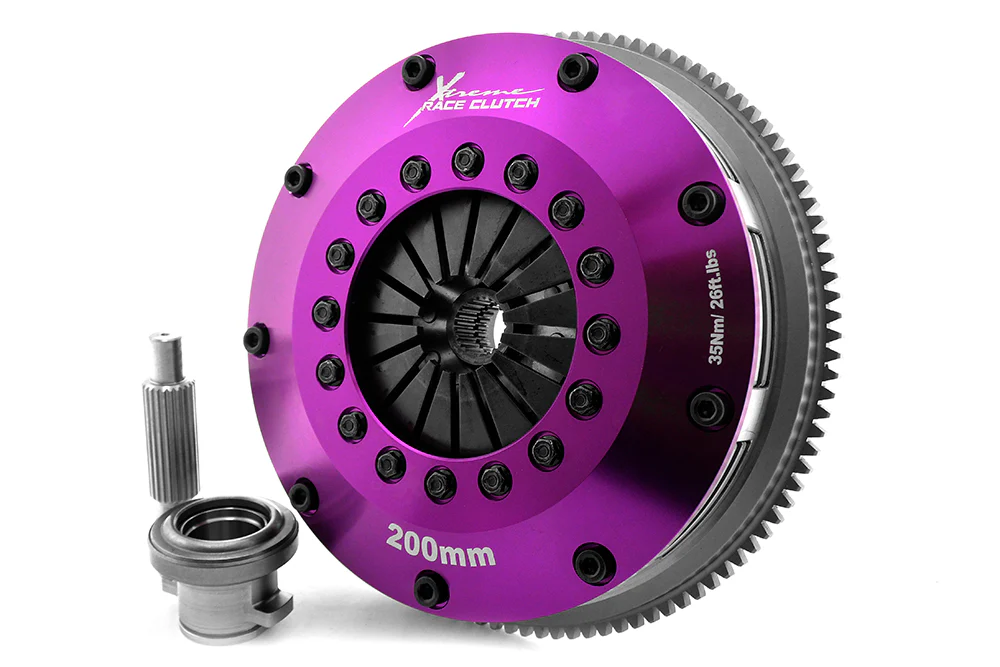

Xtreme Motorsport 200mm twin plate KNI20521-2E

Rebuild kits are available.

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.



The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).



Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Rigid driven discs (individual hubs)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
  • Clutch Disc Diameter (mm)
    200
  • Clutch Disc Spline Count
    24
  • Clutch Disc Spline Diameter (mm)
    25.5
  • Torque (Nm)
    1200
  • Flywheel Step
    +2.2mm
  • Design
    Twin Plate
  • Stage
    Multiplate - track use only


  • Weight [KG]:
    12.8
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7kg
Disc Set Static Mass 1.75kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")



Make
Model
Year
Variant
Engine
Note
Details
NISSAN 180SX coupe (S13) 1991.04-1994.03 2.0 Turbo SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03)
NISSAN 180SX coupe (S13) 1992.01-1997.01 2.0 SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01)
NISSAN 200SX coupe (S14) 1993.10-1999.12 2.0 i 16V Turbo SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12)
NISSAN 200SX coupe (S14) 1994.04-1999.09 2.0 Turbo SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09)
NISSAN SILVIA coupe (S13) 1991.01-1993.09 2.0 SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09)
NISSAN SILVIA coupe (S13) 1991.01-1993.09 2.0 SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09)
$1,598.15
Xtreme Performance SR20DET Twin Plate Clutch Kit Incl Flywheel—
$1,598.15
