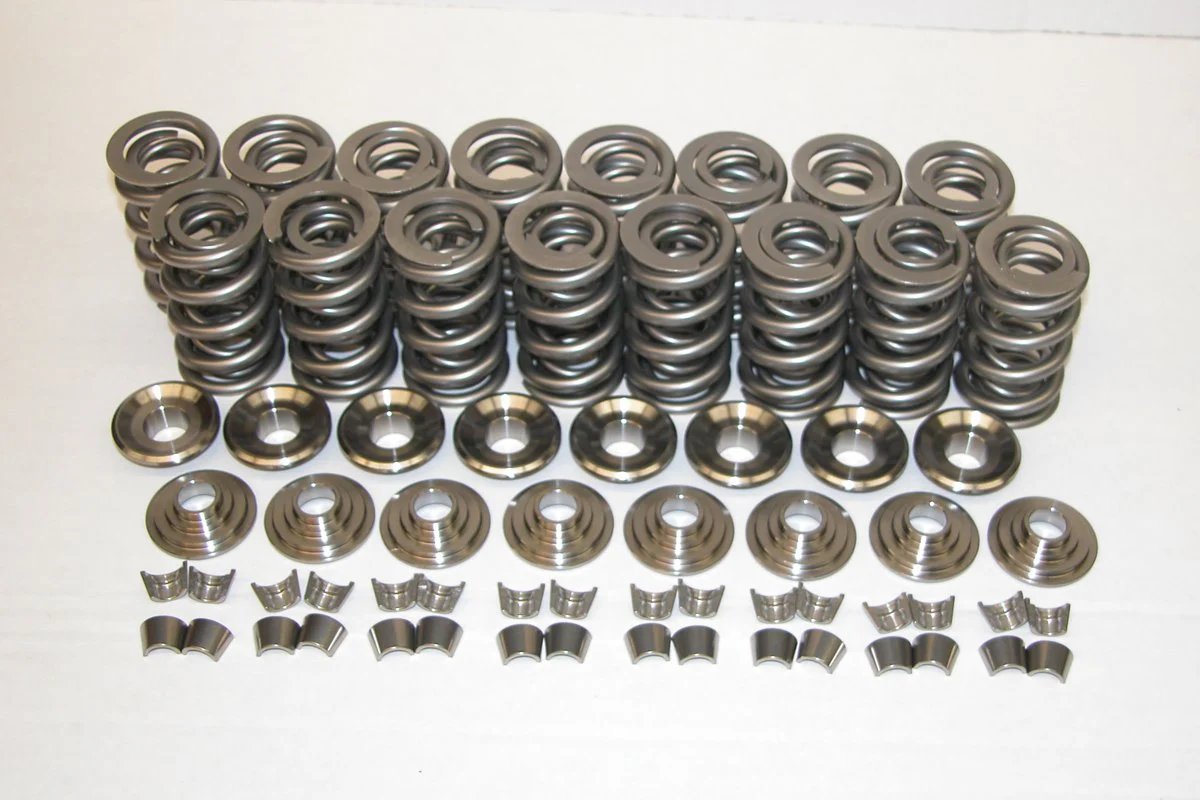

Manley Valve Spring Kit Toyota 1JZ/2JZ

Delivery may vary depending on European stock levels

If in stock at Group-D delivery will be immediate

Delivery from the European Warehouse will take an extra few days

If not in stock in Europe the product will have to to arrive from the USA and delivery could be a few weeks depending on the volume the part is made in. For example some custom Stroker Kit parts are made to order



Kit includes

Springs

Retainers

Locks

Stem Diameter	6.00 MM
Valve Stem Diameter	6.00 MM
Emissions Code	3
Product Type	Valve Spring Kit
Valve Spring Outer Diameter	1.050 IN
Valve Spring Inner Diameter	0.755 IN
Valve Spring Quantity	24
Valve Spring Coil Bind Height	0.845 IN
Valve Spring Rate	245 PPI
Valve Lift – Stock	0.340 IN
Installed Pressure and Height	82 @ 1.325 PPI
Open Pressure and Height	187 @ 0.895 PPI
Valve Lock Angle	6 DEG
