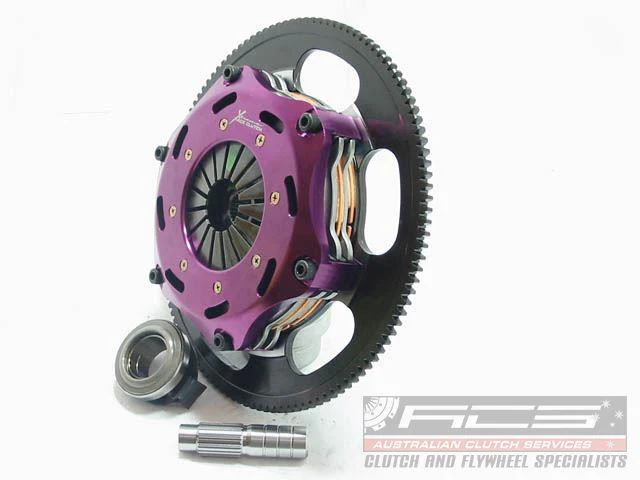

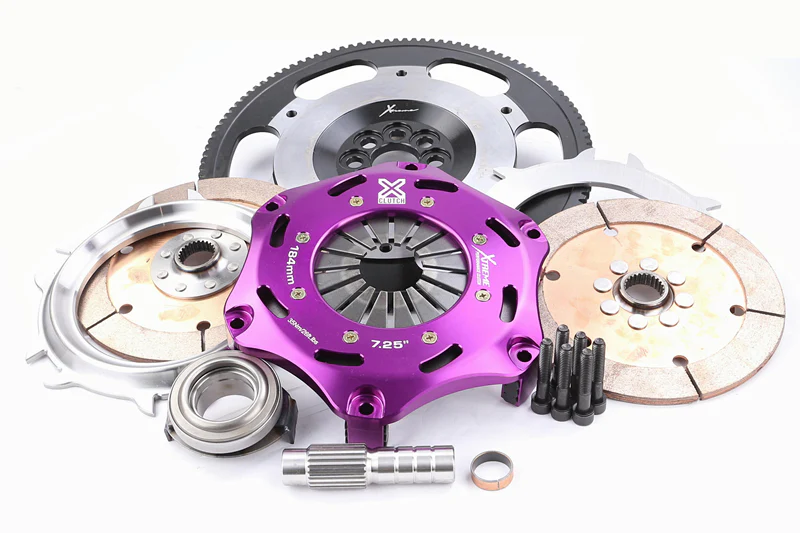

Honda K20 Xtreme Performance 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm

Product image 1
Product image 2

Honda K20 Xtreme Performance 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm

Part number KHN18523-2E

This unit is not stocked at Group D. Lead time is generally a week, but please contact us if you are in a hurry and we can confirm lead times. It is also possible to organise express shipping for two day delivery.

Xtreme Motorsport 184mm twin plate

Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.



The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.



Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design

Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L
Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP
Pressure Plate Casting 185-10B-PPC
Intermediate Plate 185-10B-IP
Pressure Plate Bolt BOLT-8X1.125X50
Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")
  • Clutch Disc Diameter (mm)
    184
  • Clutch Disc Spline Count
    24
  • Clutch Disc Spline Diameter (mm)
    26
  • Torque (Nm)
    1220
  • Flywheel Step
    +2.5mm
  • Design
    Twin Plate
  • Stage
    Multiplate - track use only
  • Tech Bulletins

  • Clamp Load
    1080kg
  • Recommended for
    Motorsport
  • Ring Gear Tooth count

  • Additional infotmation

  • Weight [KG]:
    9
Make
Model
Year
Variant
Engine
Note
Details
Honda
Civic
2001.09-2005.09
Gen. VII | 2.0 Type-R (EP3)
K20A2 1998 Petrol 147 kW 200 BHP (2001.09 - 2005.09)


Honda
Civic
2006.09-2012.01
Gen. VIII | Type R (FN2)
K20Z4 1998 Petrol 148 kW 201 BHP (2006.09 - 2012.01)


Honda
Civic
2007.08-2010.09
Gen. VIII | 2.0 i-VTEC Type R (FD2)
K20A5 1998 Petrol 165 kW 224 BHP (2007.08 - 2010.09)


Honda
Civic
2010.03-2010.12
Gen. VIII | 2.0 i-VTEC Type R (FN2)
K20Z4 1998 Petrol 177 kW 241 BHP (2010.03 - 2010.12)


Honda
Integra
2002.02-
2.0 16V Type-R (DC5)
K20Z1 1998 Petrol 162 kW 220 BHP (2002.02 - )


Honda
Integra
2004.10-
2.0 (DC5)
K20A2 1998 Petrol 147 kW 200 BHP (2004.10 - )


Honda
Integra
2004.10-2007.04
2.0 Type-S (DC5)
K20Z1 1998 Petrol 154 kW 209 BHP (2004.10 - 2007.04)
$1,809.98
