Garrett GTX3582R

Product image 1

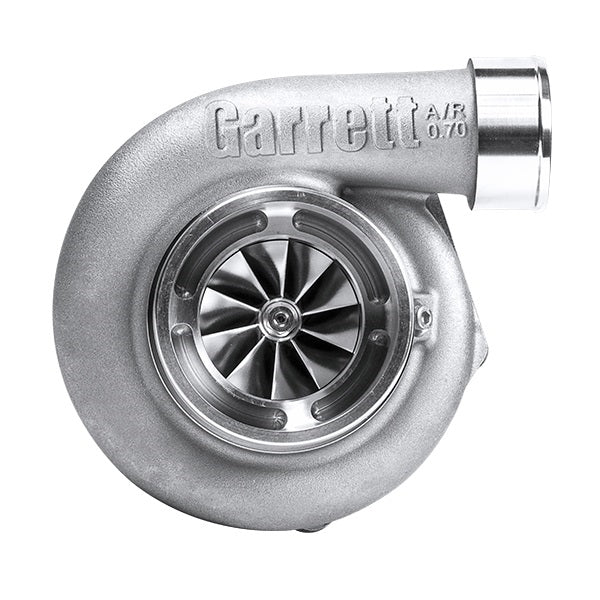

Garrett GTX3582R

836047-5002S

GTX3582R


Technical Features:

Horsepower: 450 - 700HP
Displacement: 2.0 - 4.5L
  • Forged, fully-machined 11-blade compressor wheel
  • New 8mm Ceramic Ball Beraing Cartridge
  • Ported shroud compressor housing to increase surge resistance
  • Compressor side:  TRIM 58 A/R 0.70
  • Compressor Air Inlet: 4.00"
  • Compressor Air Outlet: 2.50"
  • Turbine side:  TRIM 84
  • Bearing housing: Oil & water cooled system
  • Turbine housing & actuator not included
  • Turbine housings options
  • Old Part number 803715-5001S
$677.56

Original: $1,935.90

-65%
Garrett GTX3582R—

$1,935.90

$677.56

Product Information

Shipping & Returns

Description

836047-5002S

GTX3582R


Technical Features:

Horsepower: 450 - 700HP
Displacement: 2.0 - 4.5L
  • Forged, fully-machined 11-blade compressor wheel
  • New 8mm Ceramic Ball Beraing Cartridge
  • Ported shroud compressor housing to increase surge resistance
  • Compressor side:  TRIM 58 A/R 0.70
  • Compressor Air Inlet: 4.00"
  • Compressor Air Outlet: 2.50"
  • Turbine side:  TRIM 84
  • Bearing housing: Oil & water cooled system
  • Turbine housing & actuator not included
  • Turbine housings options
  • Old Part number 803715-5001S
Garrett GTX3582R | Group D
