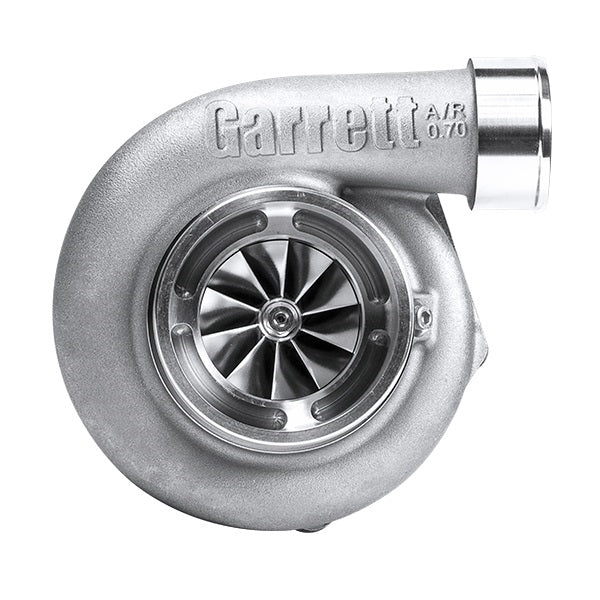

Garrett GTX3576R

Product image 1

Garrett GTX3576R

836047-5001S

GTX3576R


Technical Features:

Horsepower: 400 - 600HP
Displacement: 2.0 - 4.5L
  • Forged, fully-machined 11-blade compressor wheel
  • New 8mm Ceramic Ball Beraing Cartridge
  • Ported shroud compressor housing to increase surge resistance
  • Compressor side: TRIM 58 A/R 0.60
  • Compressor Air Inlet: 4.00"
  • Compressor Air Outlet: 2.00"
  • Turbine side: TRIM 84
  • Bearing housing: Oil & water cooled system
  • Turbine housing & actuator not included
  • Turbine housings options
  • Old Part number 803714-5001S
$669.74

Original: $1,913.54

-65%
Garrett GTX3576R—

$1,913.54

$669.74

Product Information

Shipping & Returns

Description

836047-5001S

GTX3576R


Technical Features:

Horsepower: 400 - 600HP
Displacement: 2.0 - 4.5L
  • Forged, fully-machined 11-blade compressor wheel
  • New 8mm Ceramic Ball Beraing Cartridge
  • Ported shroud compressor housing to increase surge resistance
  • Compressor side: TRIM 58 A/R 0.60
  • Compressor Air Inlet: 4.00"
  • Compressor Air Outlet: 2.00"
  • Turbine side: TRIM 84
  • Bearing housing: Oil & water cooled system
  • Turbine housing & actuator not included
  • Turbine housings options
  • Old Part number 803714-5001S
Garrett GTX3576R | Group D
