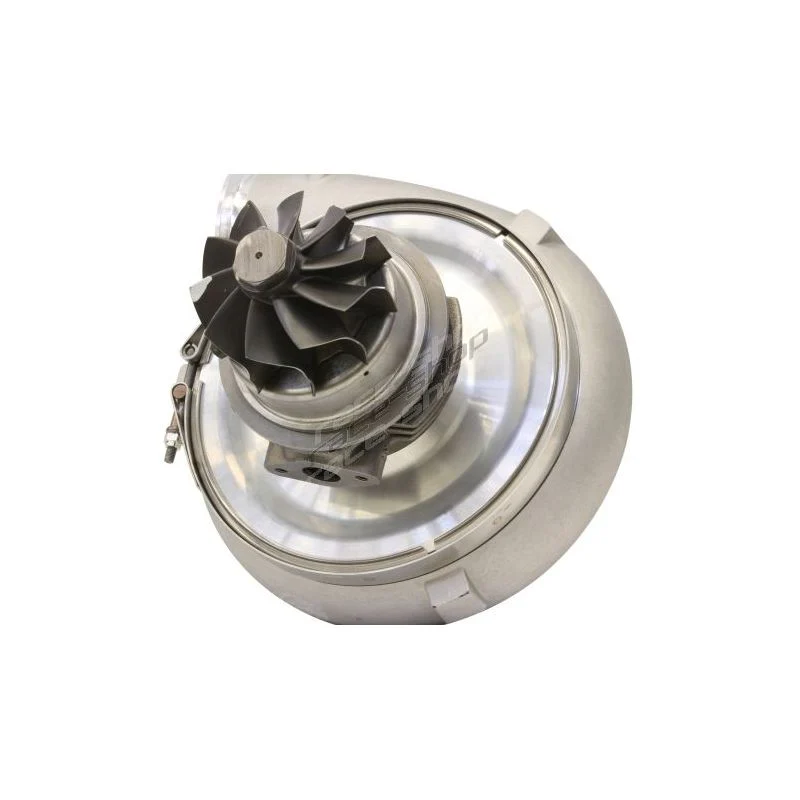

Garrett Gen 2 GTX3582R Supercore (No Turbine Housing)
851154-5004S
GTX3582R Gen2 (Super Core)
Horsepower: 450 - 850HP
Displacement: 2.0 - 4.5L
- Gen2 Aero compressor wheel for improved performance.
- Improved ported shroud design for surge resistance.
- New compressor housing aesthetics.
- Integrated speed sensor port.
- Compact design for tight installations.
- Standar rotation.
- Actuator and turbine housing not include.
- Compressor side: TRIM 64 A/R 0.70
- Compressor Air Inlet: Hose 4.00" (101.60mm)
- Compressor Air Outlet: Hose 2.50" (63.50mm)
- Turbine side: TRIM 84
- Bearing housing: Oil & water cooled system.
Original: $1,967.67
-65%$1,967.67
$688.68Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
851154-5004S
GTX3582R Gen2 (Super Core)
Horsepower: 450 - 850HP
Displacement: 2.0 - 4.5L
- Gen2 Aero compressor wheel for improved performance.
- Improved ported shroud design for surge resistance.
- New compressor housing aesthetics.
- Integrated speed sensor port.
- Compact design for tight installations.
- Standar rotation.
- Actuator and turbine housing not include.
- Compressor side: TRIM 64 A/R 0.70
- Compressor Air Inlet: Hose 4.00" (101.60mm)
- Compressor Air Outlet: Hose 2.50" (63.50mm)
- Turbine side: TRIM 84
- Bearing housing: Oil & water cooled system.
