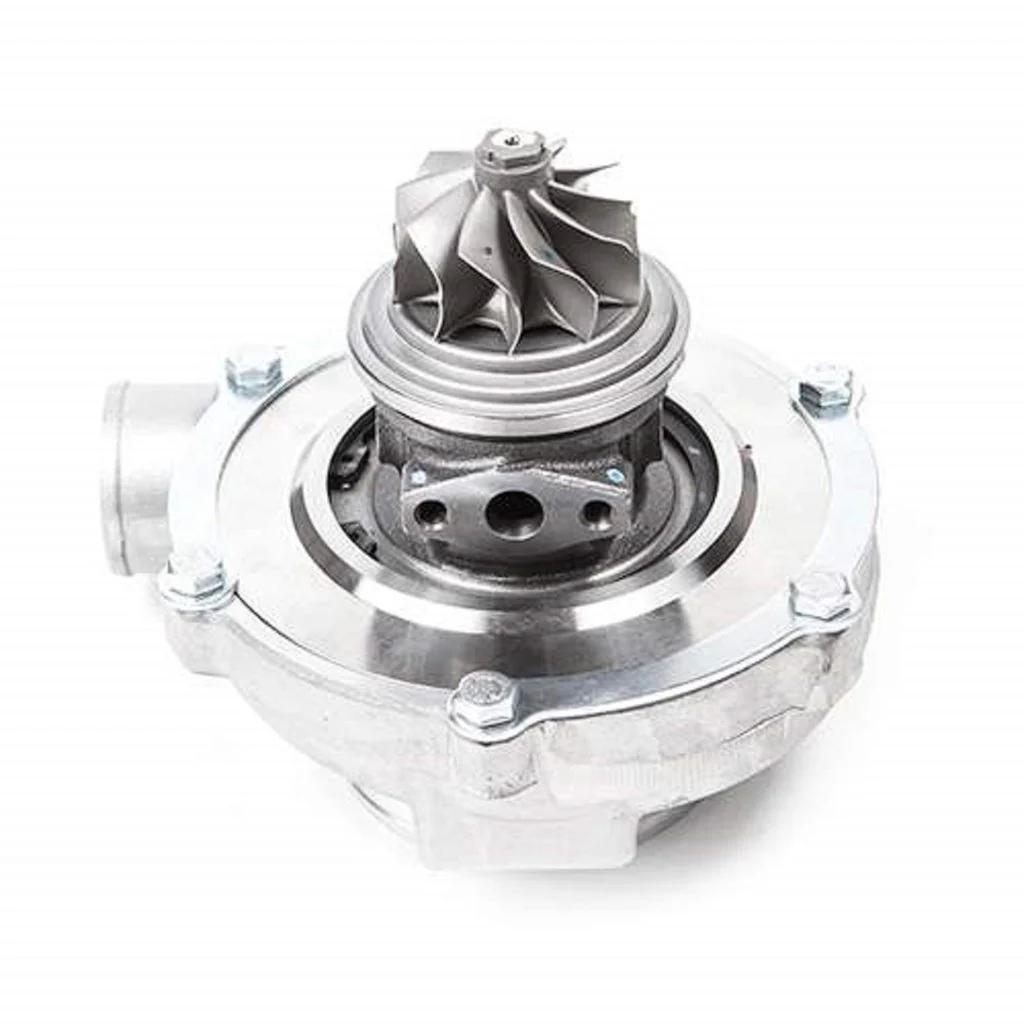

Garrett Gen 2 GTX3576R Supercore (No Turbine Housing)
851154-5003S
GTX3576R Gen2 (Super Core)
Horsepower: 400 - 750HP
Displacement: 2.0 - 4.5L
- Gen2 Aerodynamics feature increased horsepower range.
- Improved ported shroud design for surge resistance.
- New compressor housing aesthetics.
- Integrated speed sensor port.
- Standar rotation.
- Actuator and turbine housing not include.
- Compressor side: TRIM 58 A/R 0.60
- Compressor Air Inlet: Hose 4.00" (101.60mm)
- Compressor Air Outlet: Hose 2.0" (50.80mm)
- Turbine side: TRIM 84
- Bearing housing: Water and Oil cooled system.
Original: $1,918.25
-65%$1,918.25
$671.39Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
851154-5003S
GTX3576R Gen2 (Super Core)
Horsepower: 400 - 750HP
Displacement: 2.0 - 4.5L
- Gen2 Aerodynamics feature increased horsepower range.
- Improved ported shroud design for surge resistance.
- New compressor housing aesthetics.
- Integrated speed sensor port.
- Standar rotation.
- Actuator and turbine housing not include.
- Compressor side: TRIM 58 A/R 0.60
- Compressor Air Inlet: Hose 4.00" (101.60mm)
- Compressor Air Outlet: Hose 2.0" (50.80mm)
- Turbine side: TRIM 84
- Bearing housing: Water and Oil cooled system.
