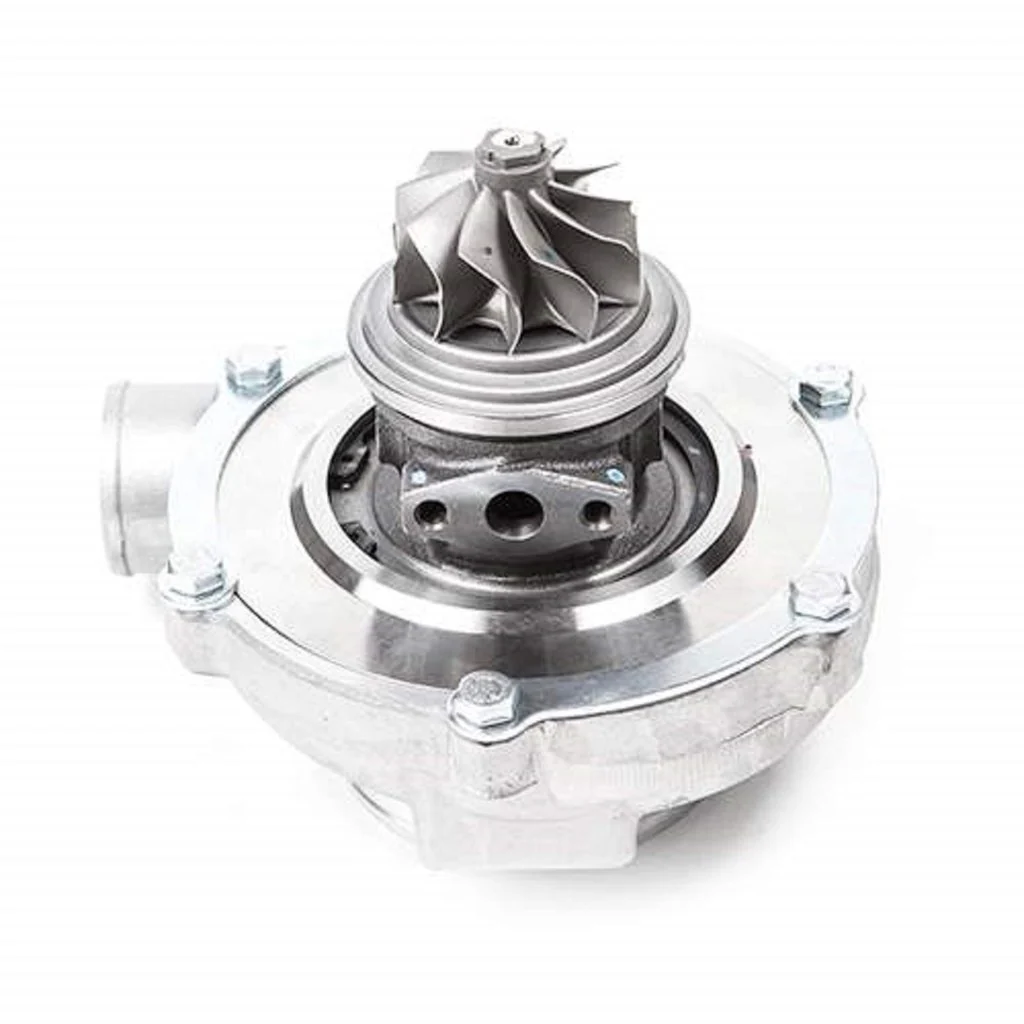

Garrett Gen 2 GTX2867R Supercore (No Turbine Housing)
849894-5002S
GTX2867R Gen2 (Super Core)
Horsepower: 275 - 550HP
Displacement: 1.4 - 2.5L
- Gen2 Aerodynamics feature increased horsepower range.
- Improved ported shroud design for surge resistance.
- New compressor housing aesthetics.
- Integrated speed sensor port.
- Standar rotation.
- Actuator and turbine housing not include.
- Compressor side: TRIM 55 A/R 0.60
- Compressor Air Inlet: Hose 3.00" (76.20mm)
- Compressor Air Outlet: Hose 2.00" (50.80mm)
- Turbine side: TRIM 76
- Bearing housing: Water and Oil cooled system.
