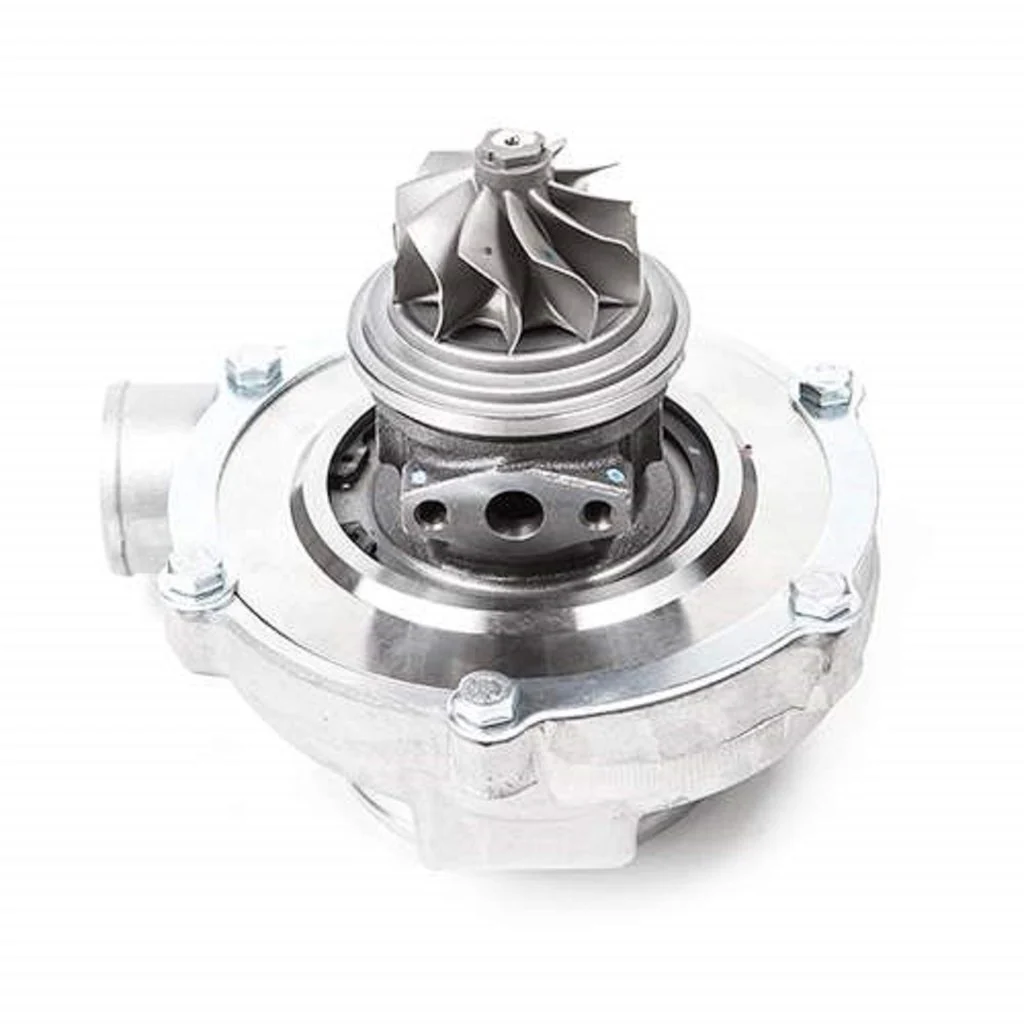

Garrett Gen 2 GTX2860R Supercore (No Turbine Housing)

Product image 1

Garrett Gen 2 GTX2860R Supercore (No Turbine Housing)

849894-5001S
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Technical Features:

Horsepower: 200 - 475HP
Displacement: 1.4 - 2.5L
  • Gen2 Aerodynamics feature increased horsepower range.
  • Improved ported shroud design for surge resistance.
  • New compressor housing aesthetics.
  • Integrated speed sensor port.
  • Standar rotation.
  • Actuator and turbine housing not include.
  • Compressor side: TRIM 58 A/R 0.60
  • Compressor Air Inlet: Hose 3.00" (76.20mm)
  • Compressor Air Outlet: Hose 2.00" (50.80mm)
  • Turbine side: TRIM 76
  • Bearing housing: Water and Oil cooled system.
