FULL SUSPENSION BUSH KIT MICRA K11

Please provide the following measurements in the comments section when ordering. This will ensure that all bushes will be correct first time for your K11:

• Front anti roll bar diameter
• Rear anti roll bar diameter
• Power steering or non power steering
• Diameter of the front wishbone, front bush, 26mm or 28.5mm (please see diagram)



Reference: 286057B

Product name: Full suspension bush kit

Include:

• 2x 281201B: Front wishbone front bush 28,5mm
  or
• 2x 281907B: Front wishbone front bush 26mm


• 2x 281202B: Front wishbone rear bush
• 2x 281207B: Front anti roll bar bush
• 8x 281230B: Anti roll bar link bush
• 4x 281203B: Rear arm-front bushing
• 2x 281204B: Rear upper arm - rear bush
• 2x 281205B: Rear lower arm - rear bush
• 1x 281206B: Rear panhard rod bush - body mount
• 1x 281209B: Rear panhard rod bush - beam mount
• 2x 281208B: Rear anti roll bar bush
• 1x 281210B: Steering rack bush
• 1x 281211B: Steering rack bush

Diagrams:

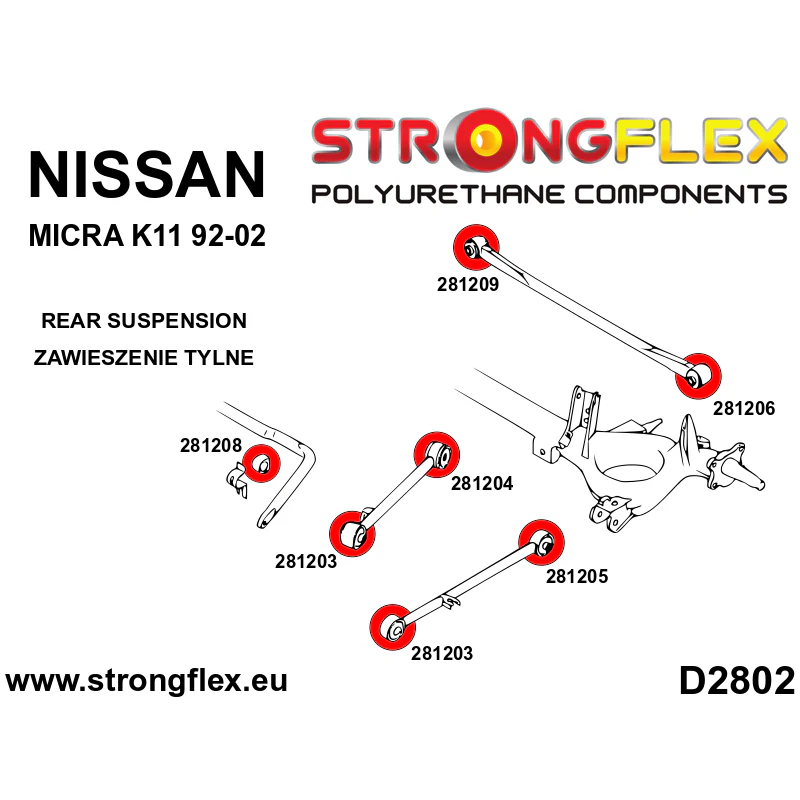

• D2802
• D2801

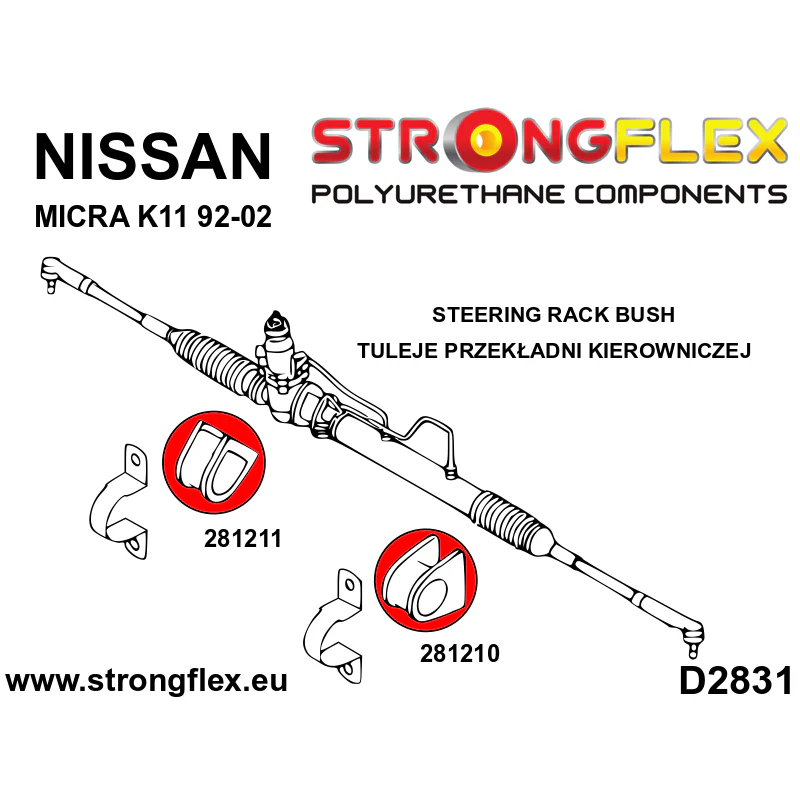

• D2831

Notes

• In the K11 models there are two diameters front wishbone - front bush.
  281201 - 28.5 mm
  281907 - 26 mm
  Check the diameters before placing order.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 28

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
