Modular Rear Tube Frame Universal Weld On

Check out our Modular Rear Tube Frame!!

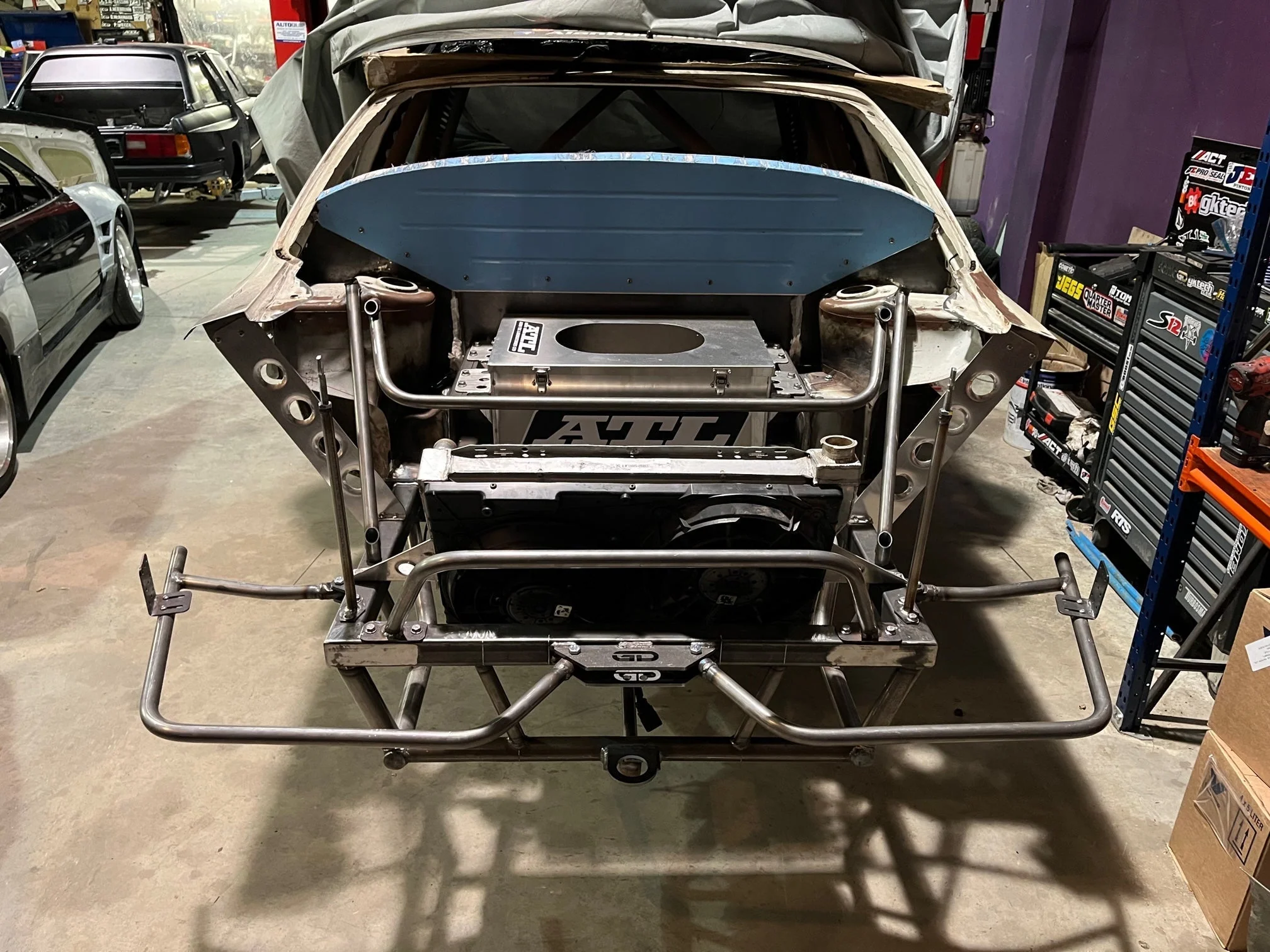

The total rear chassis solution from Group-D

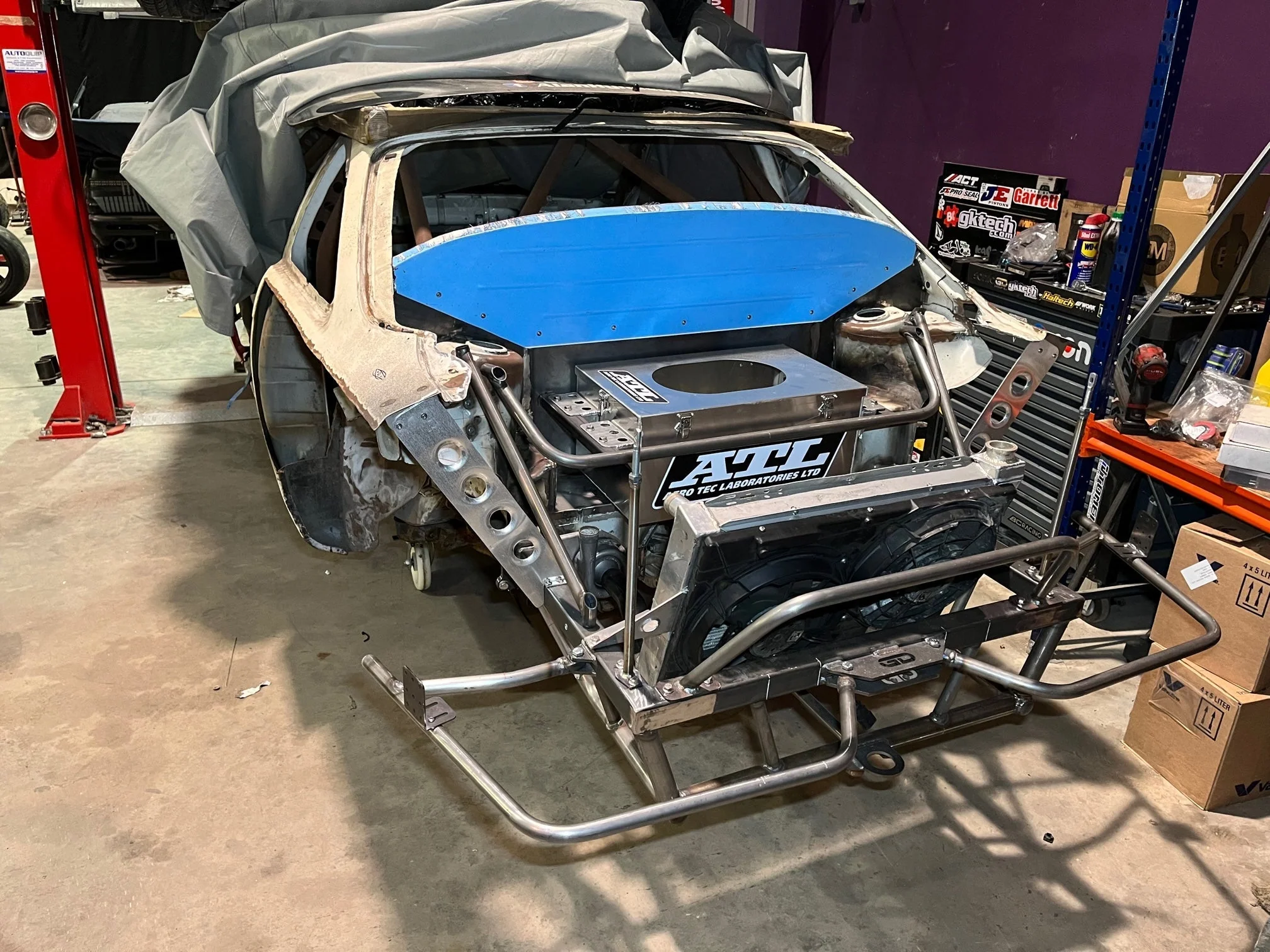

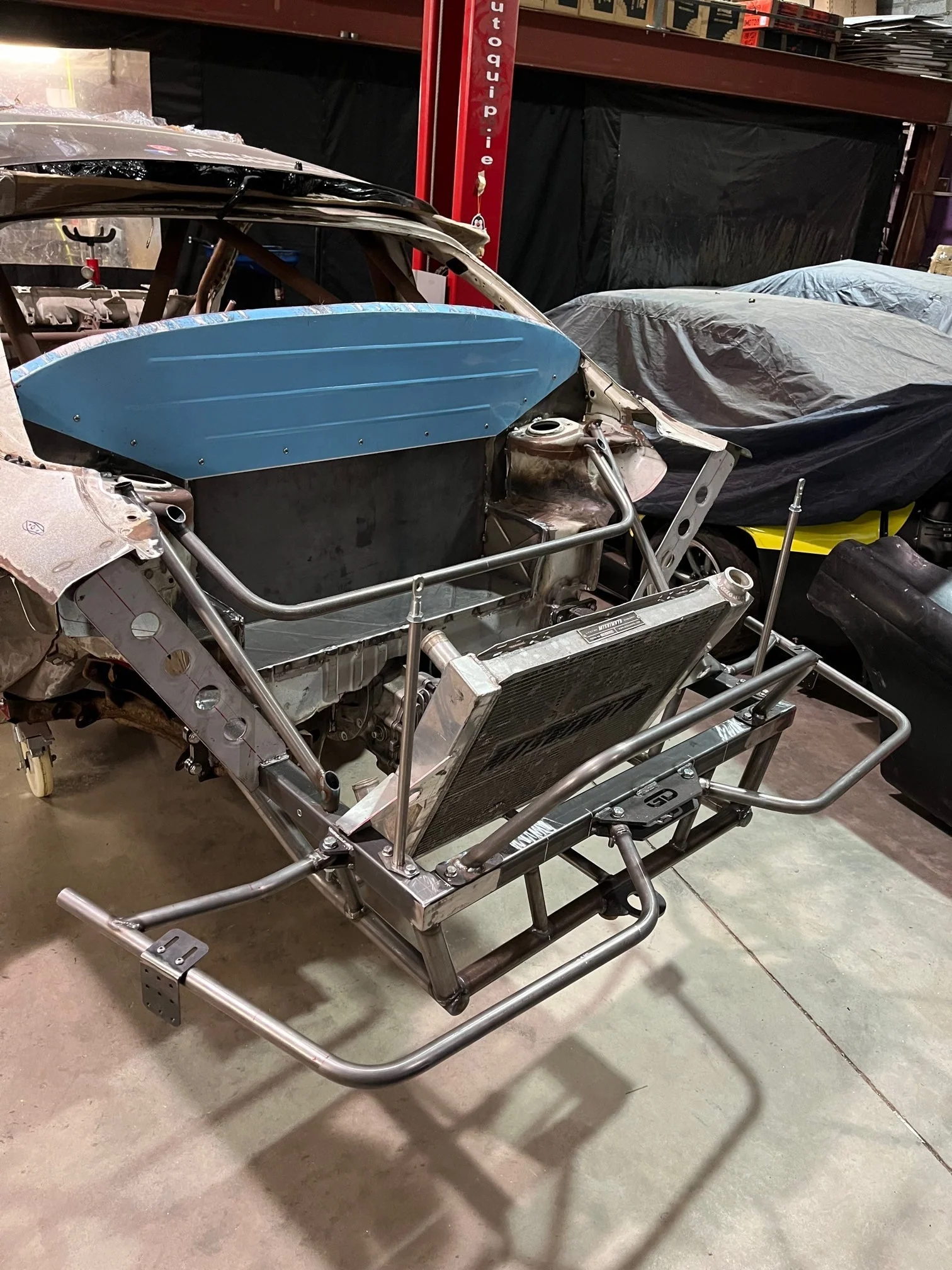

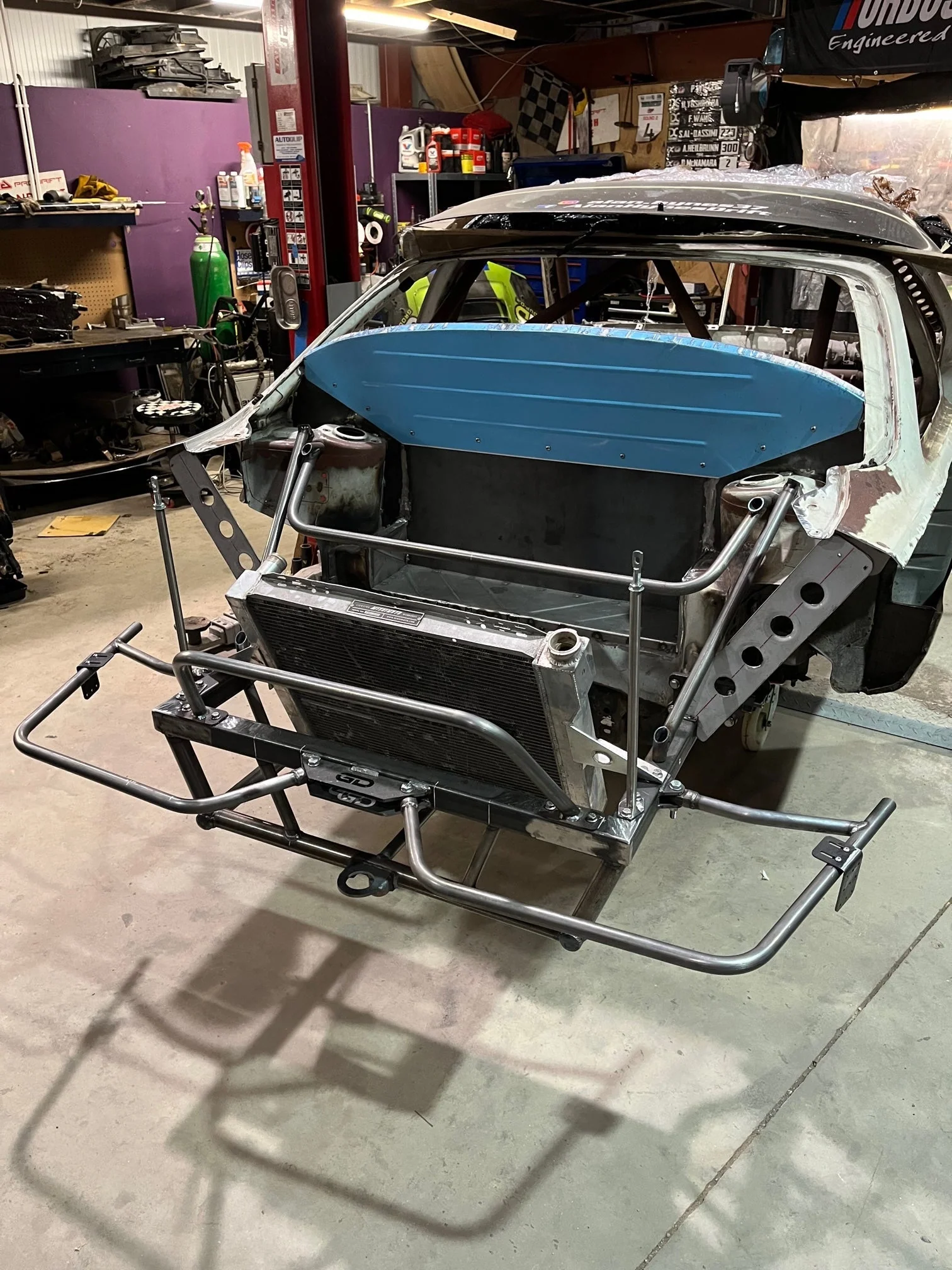

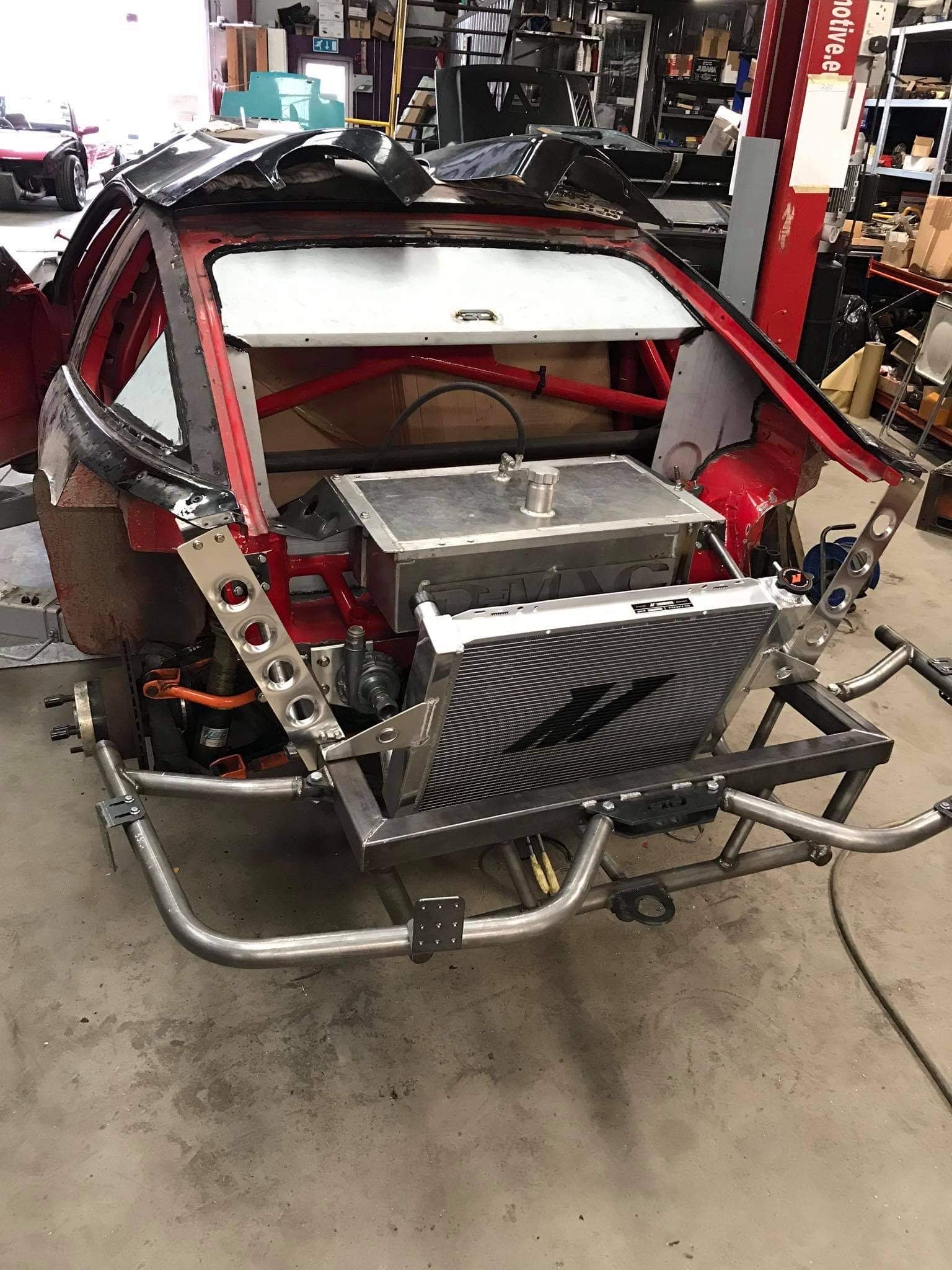

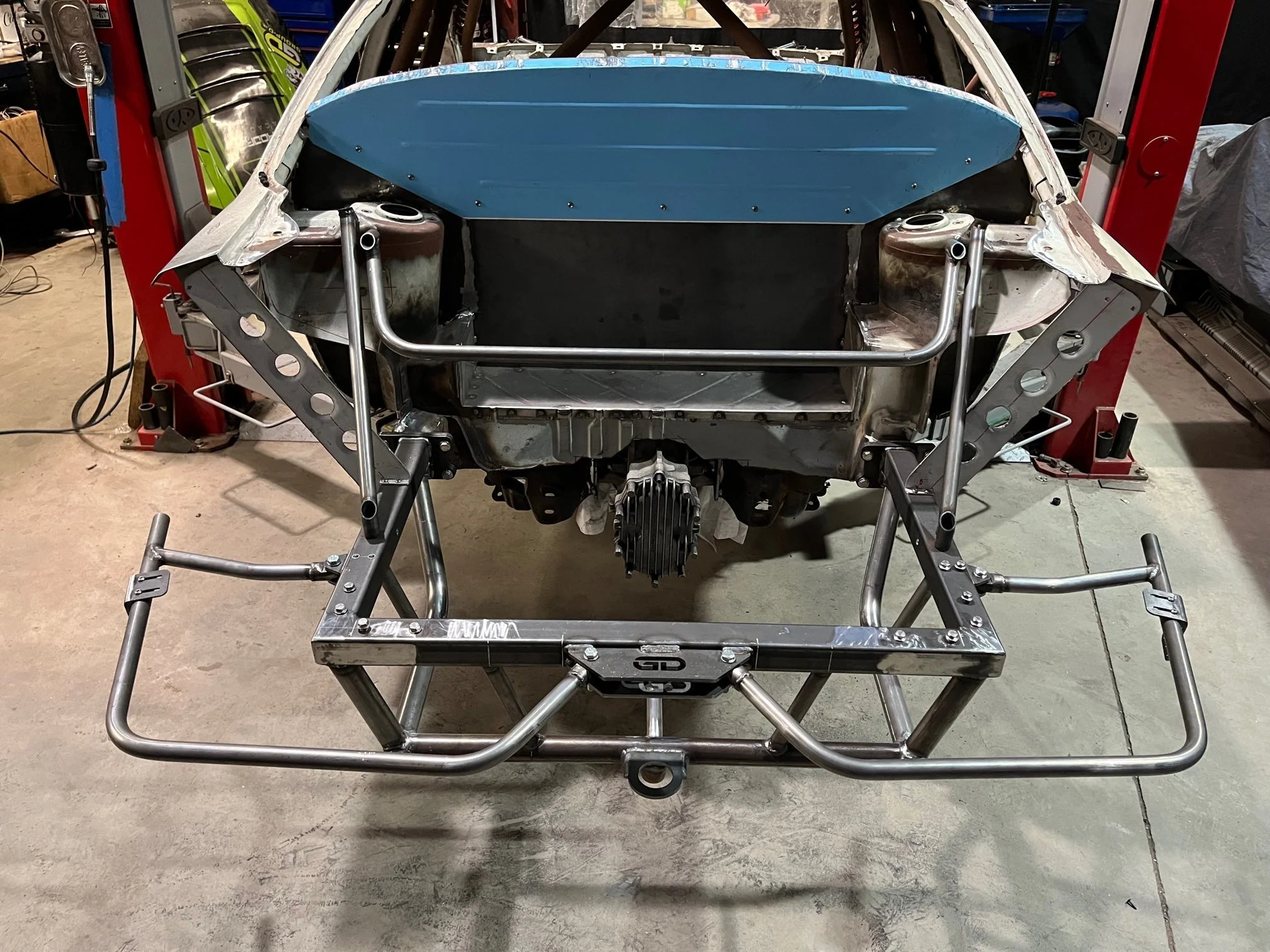

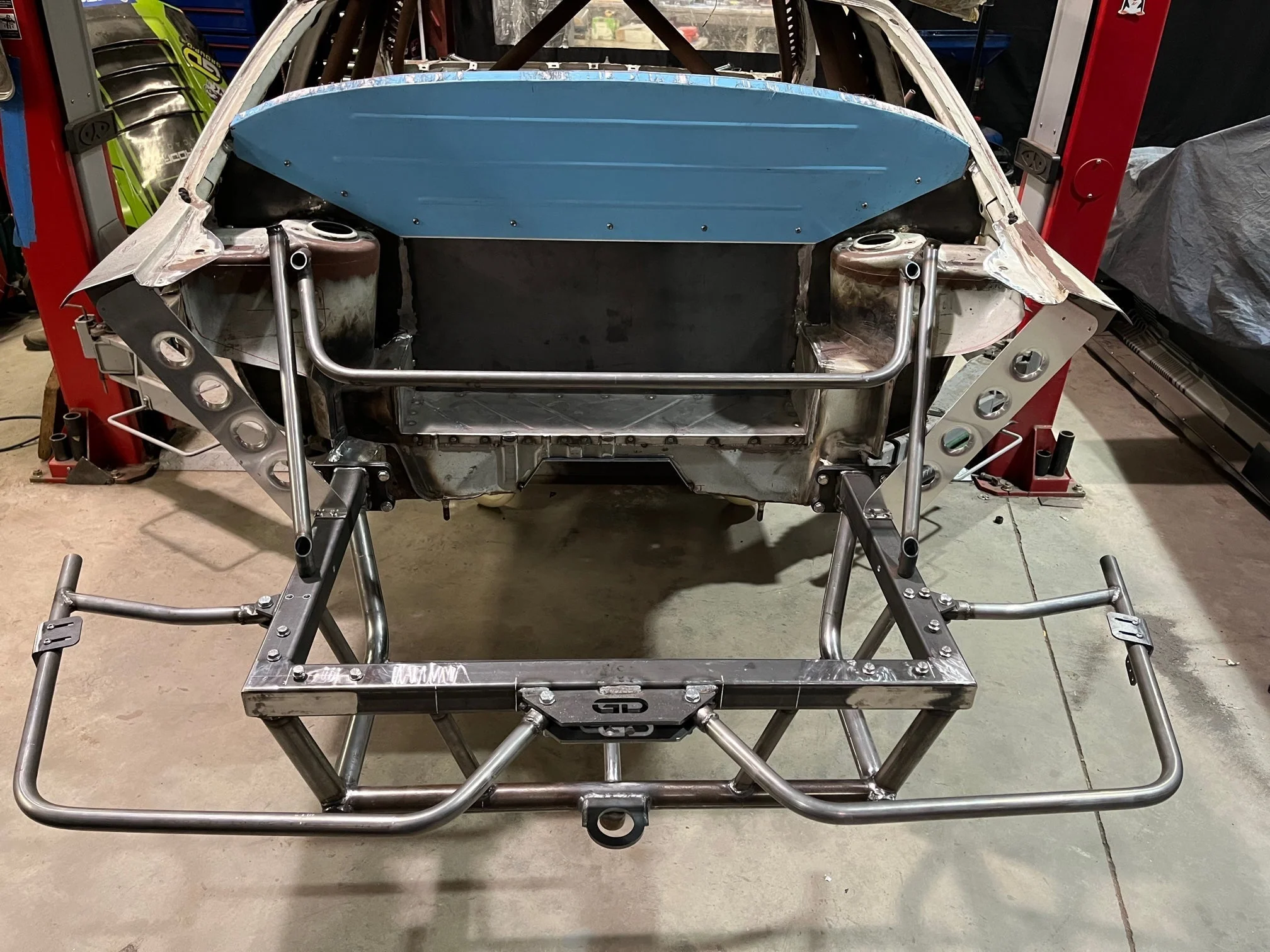

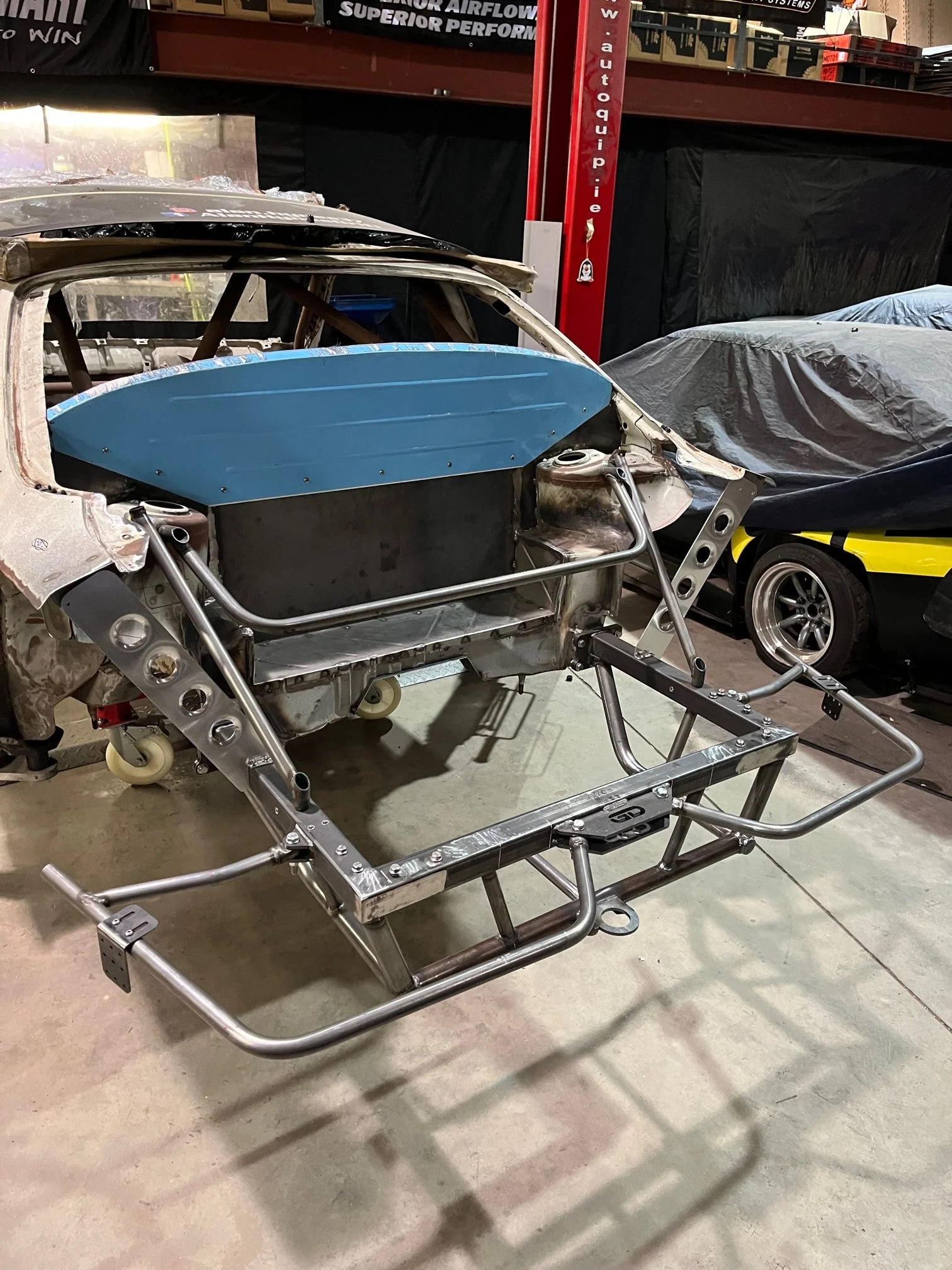

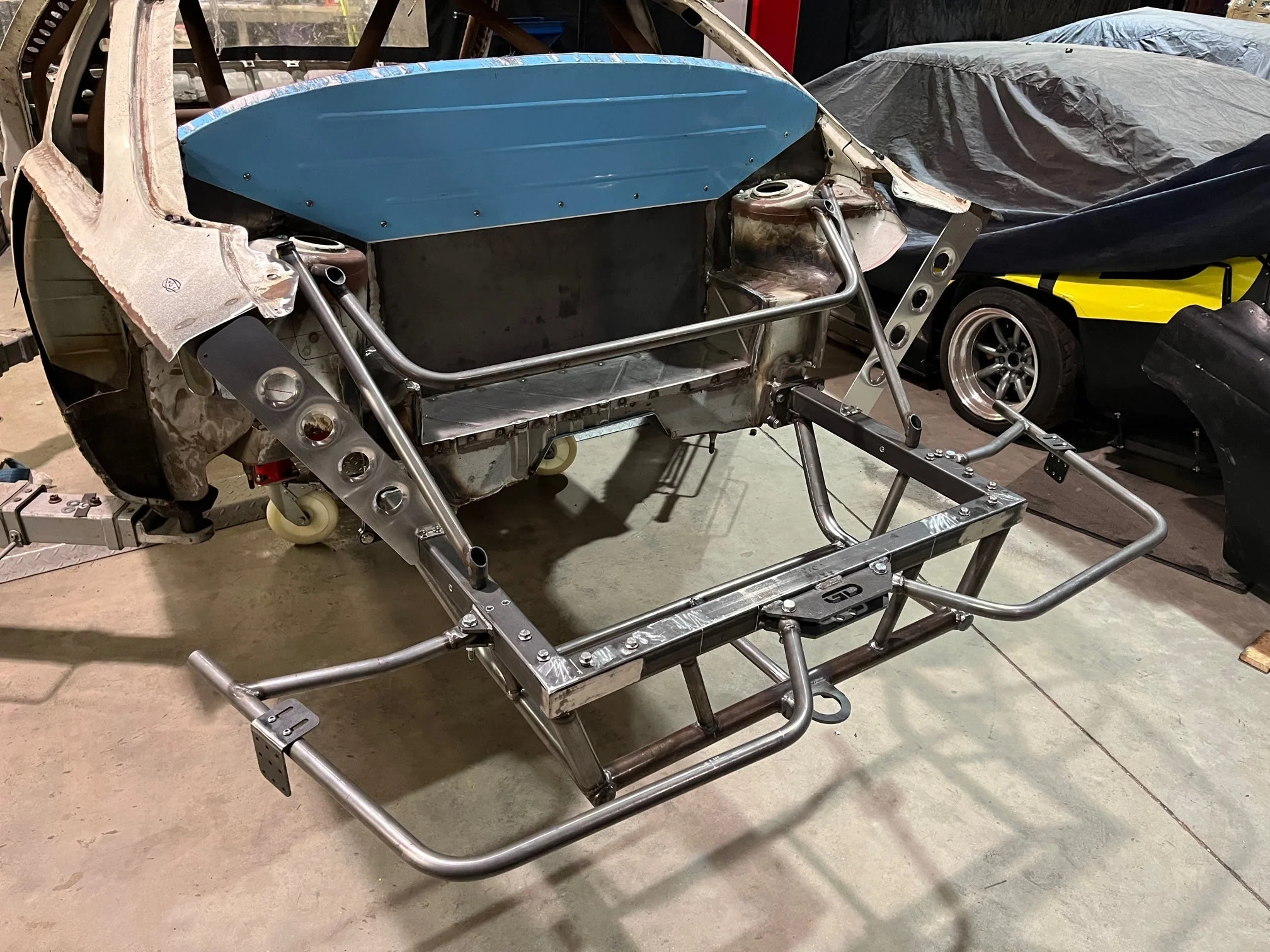

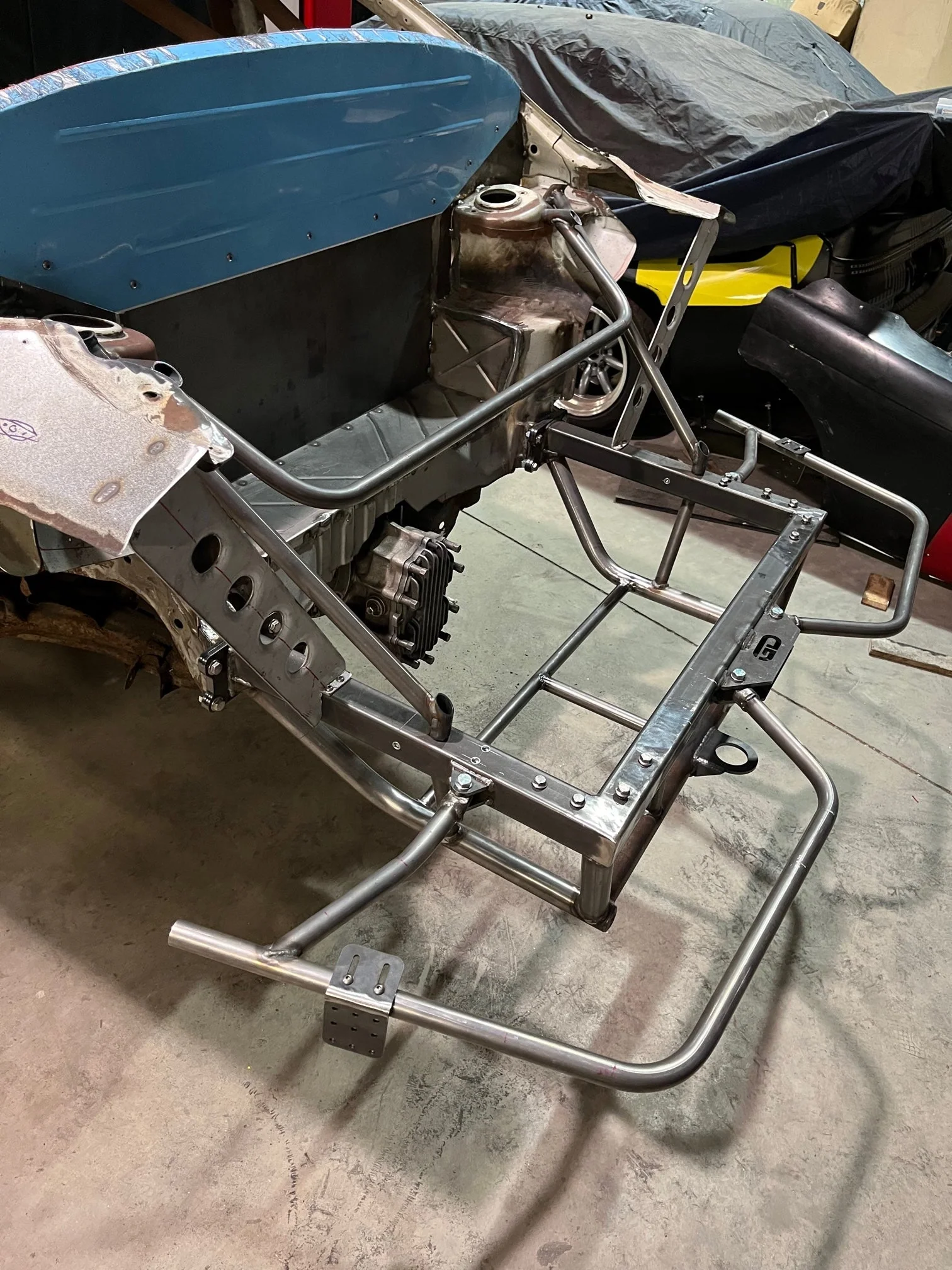

Consisting of a 51mm upper square tube section and 38mm seamless round tube lower section

OUR MODULAR REAR IS SUPPLIED CUT, NOTCHED, WITH ALL MOUNTS PRE DONE AND ALL BRACKETS WELDED. THE SQUARE TUBE UPPER SECTION IS SUPPLIED IN THREE SEPARATE PIECES AND THE ROUND TUBE LOWER SECTION IS SUPPLIED IN 11 SEPARATE PIECES. FINAL WELDING WILL BE REQUIRED. THIS IS THE ONLY WAY WE CAN SHIP WORLDWIDE. IRISH CUSTOMERS CAN CONTACT US ABOUT FULLY ASSEMBLED REAR FRAMES

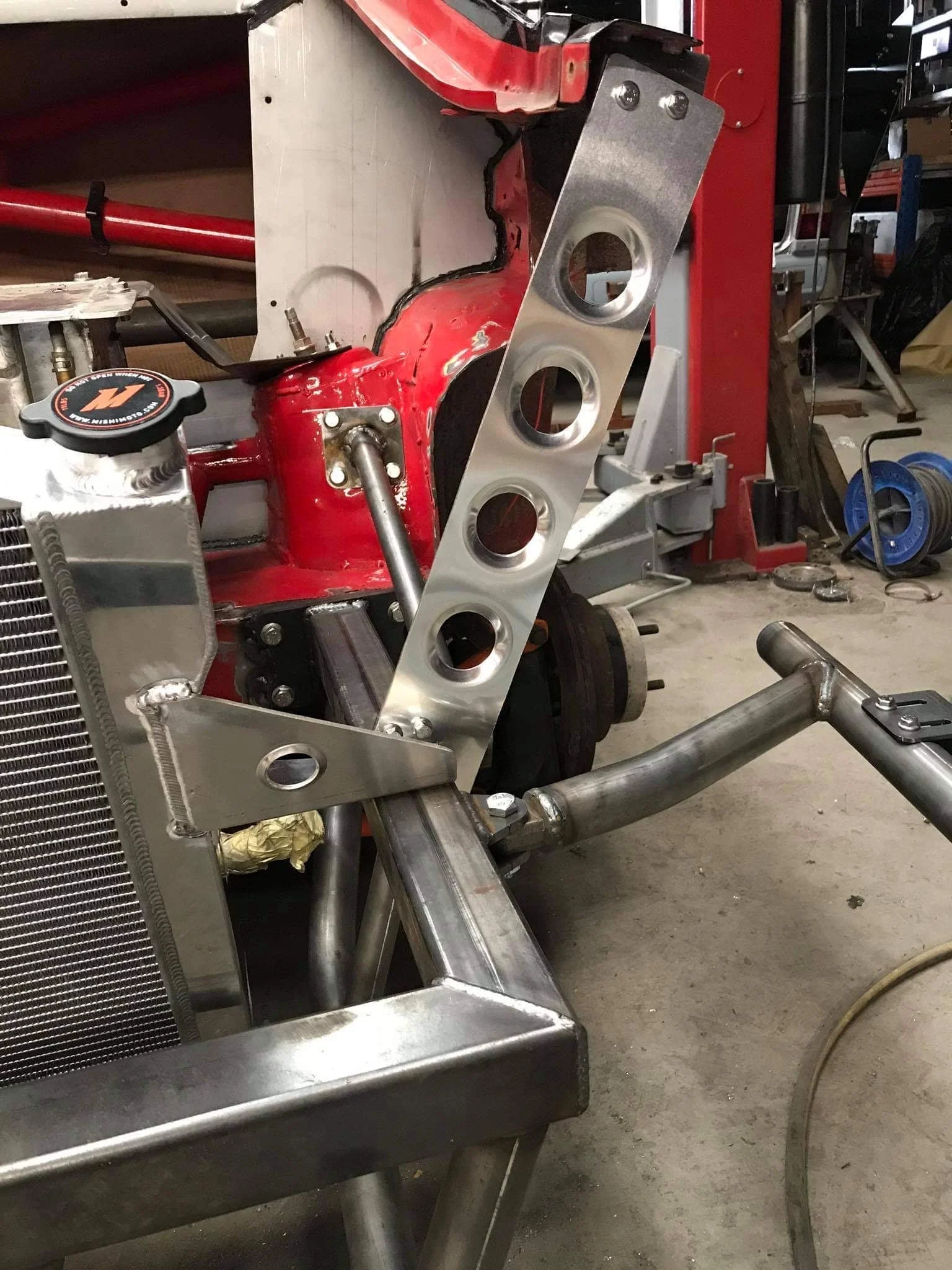

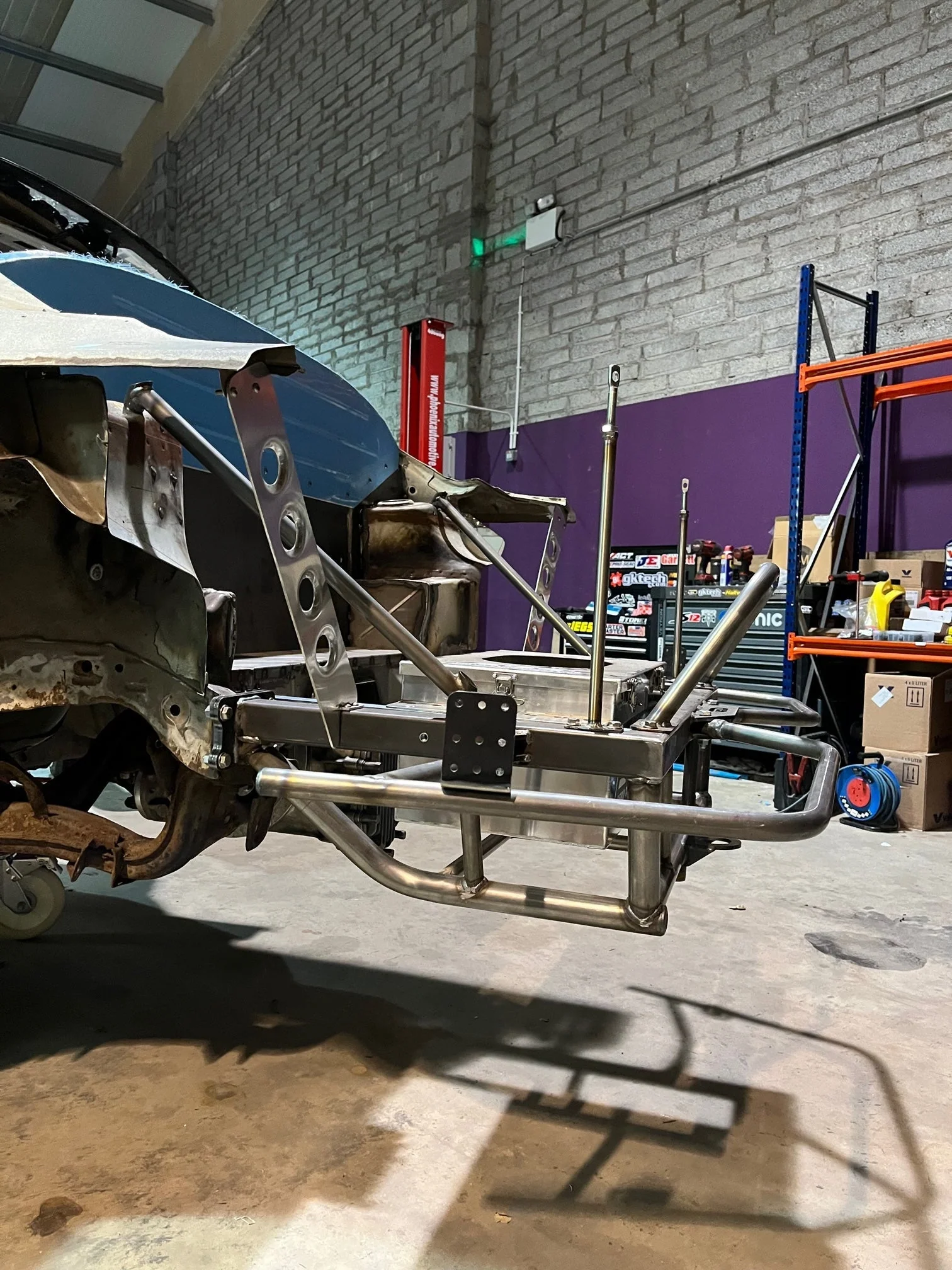

The upper 51mm square tube section features

- Laser cut bumper bar mounts

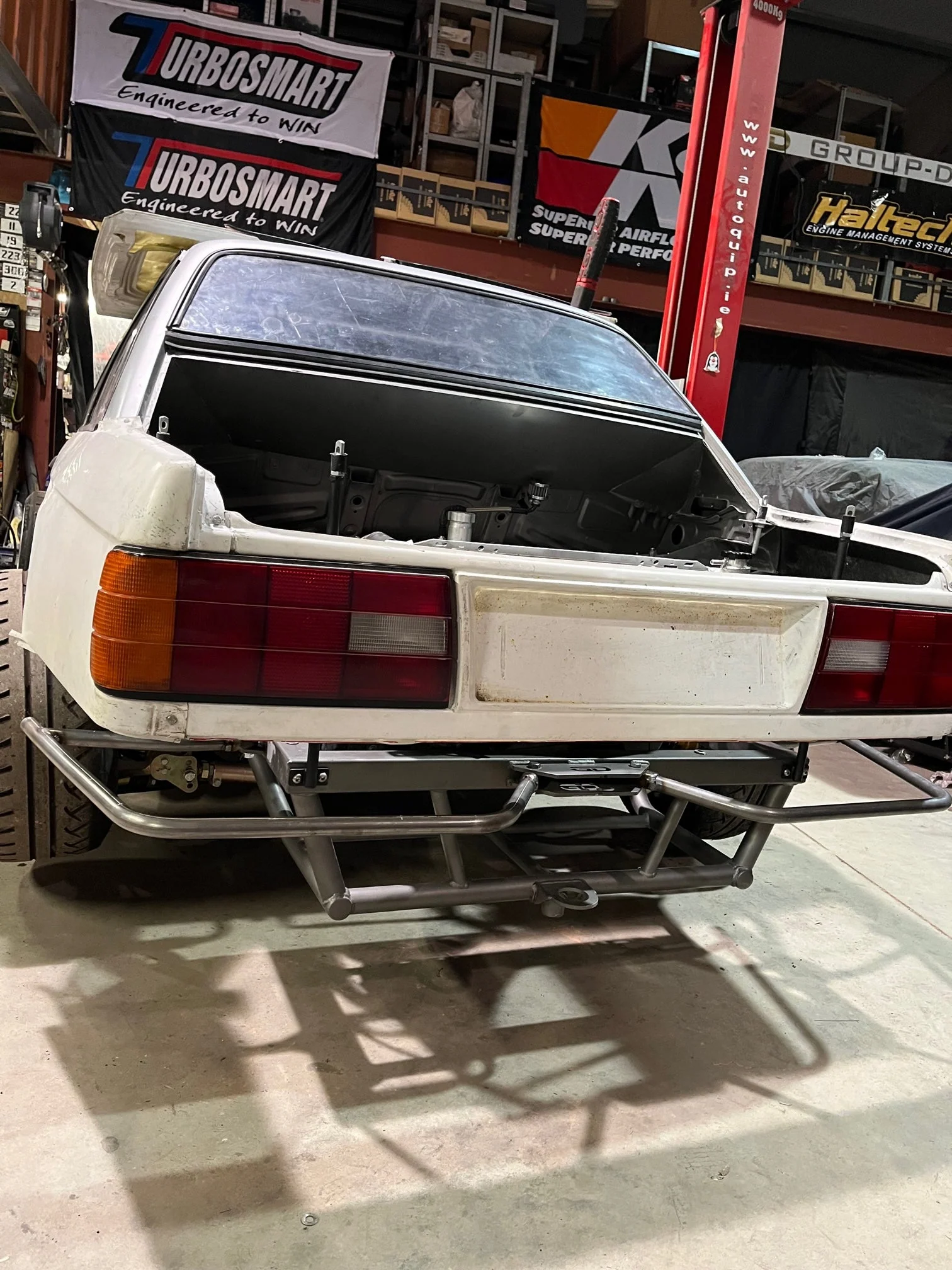

- Rear laser cut bumper bar mount has provision for tow hook mounting which is then visible through the number plate opening in the rear bumper

- Square tube upper section allows from easy mounting of further items such as batteries, Fire Ex kits, Nitrous Bottles etc event after paint. This is why we use square upper sections and round lower sections

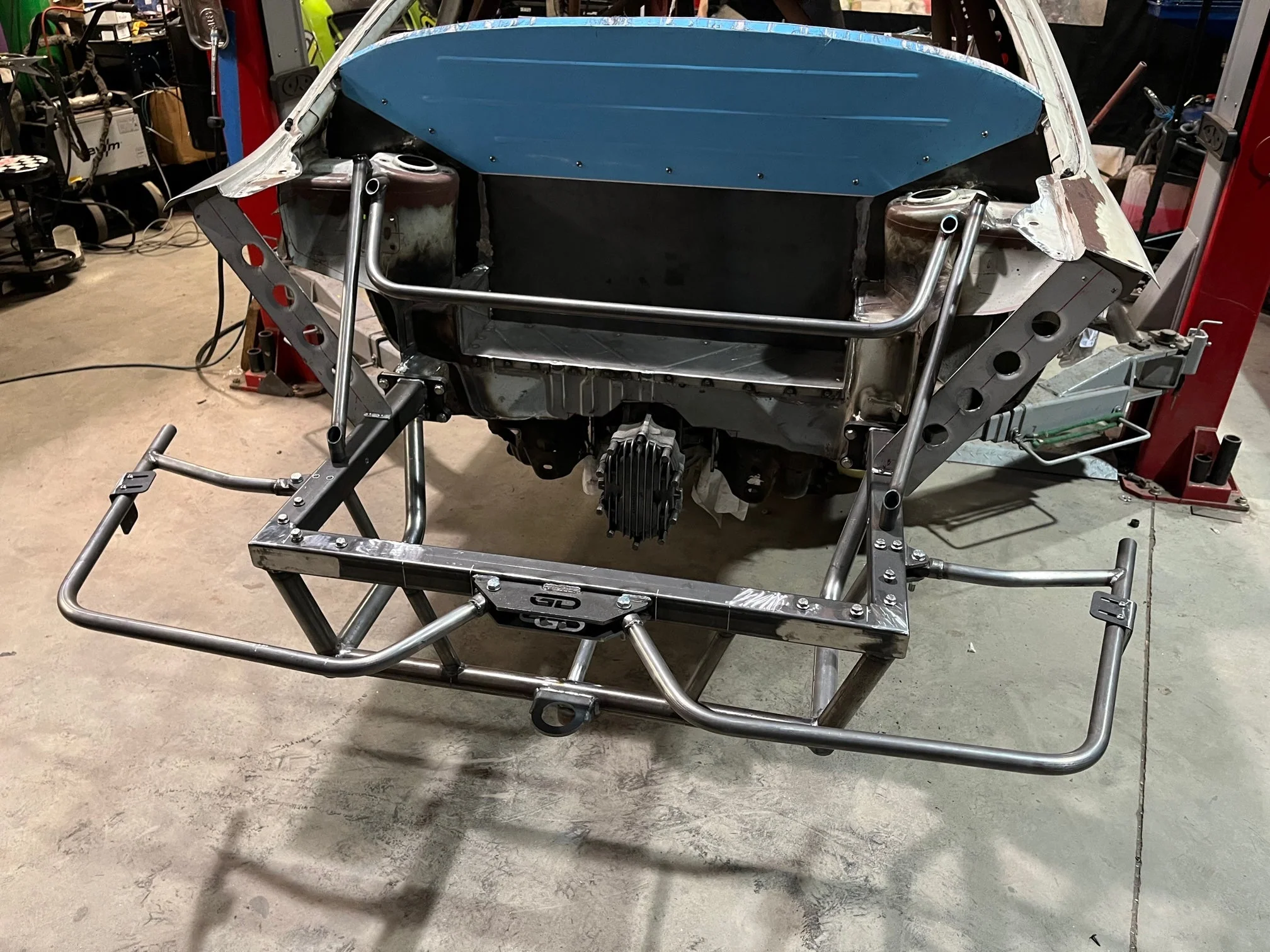

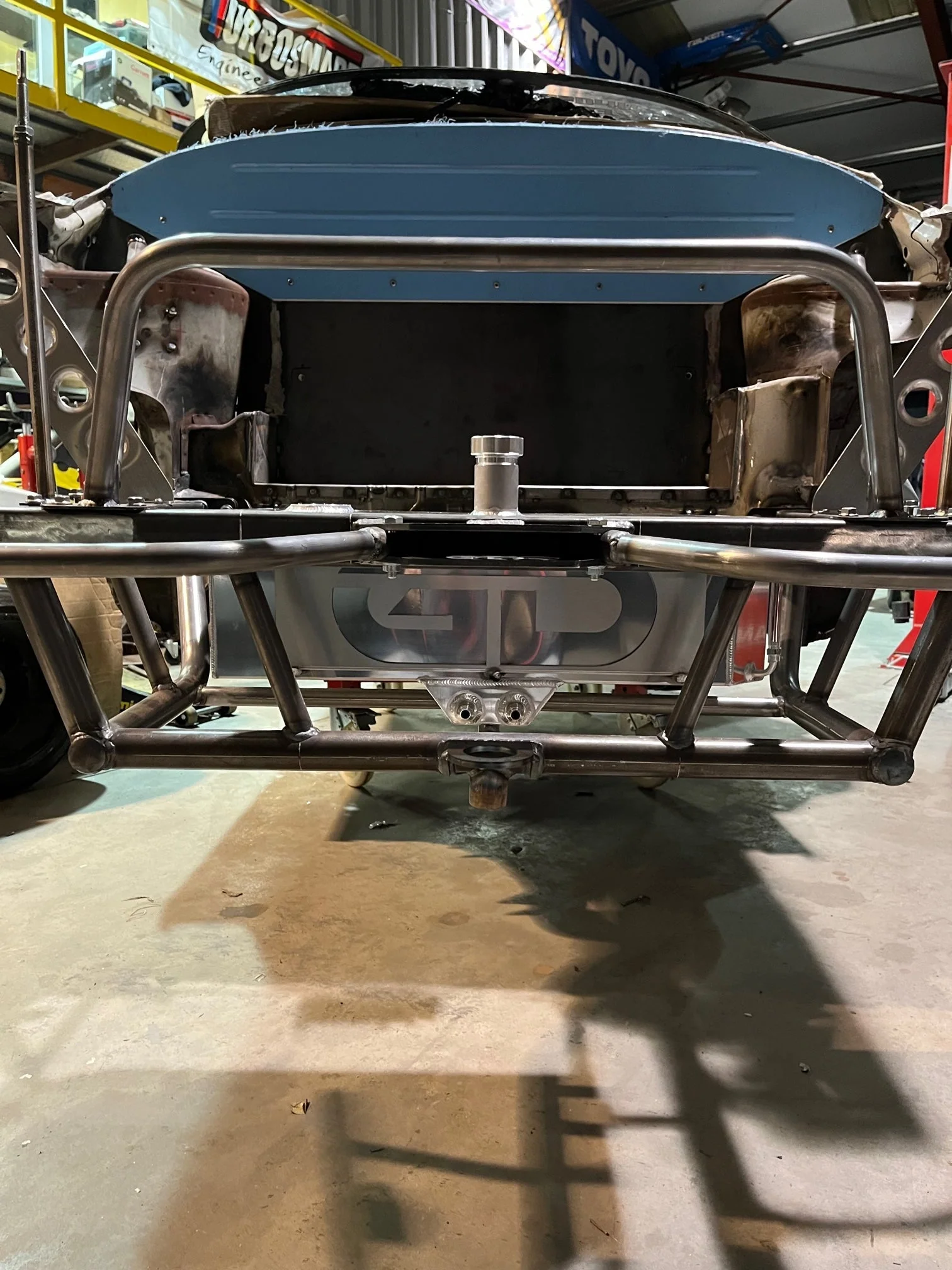

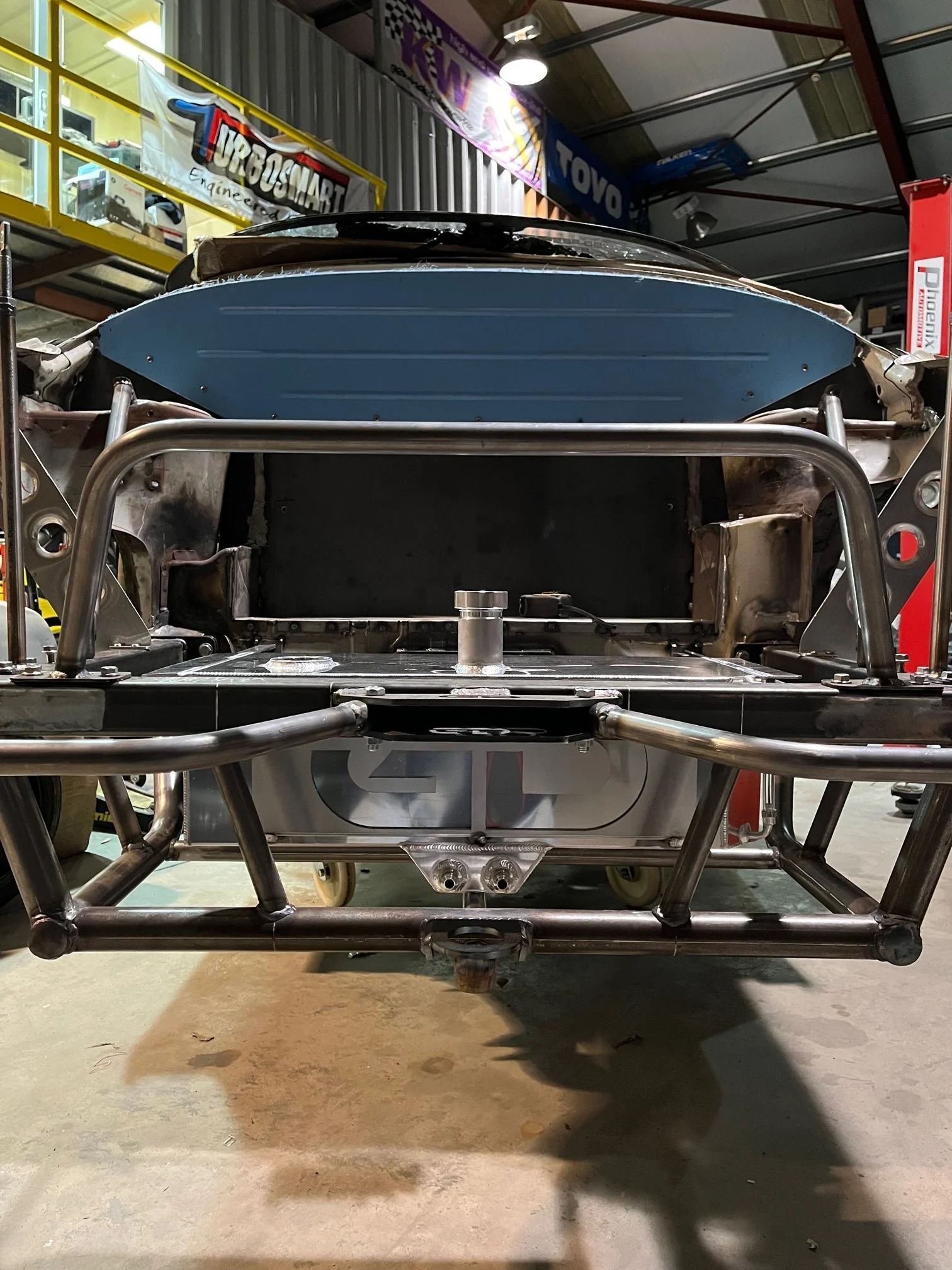

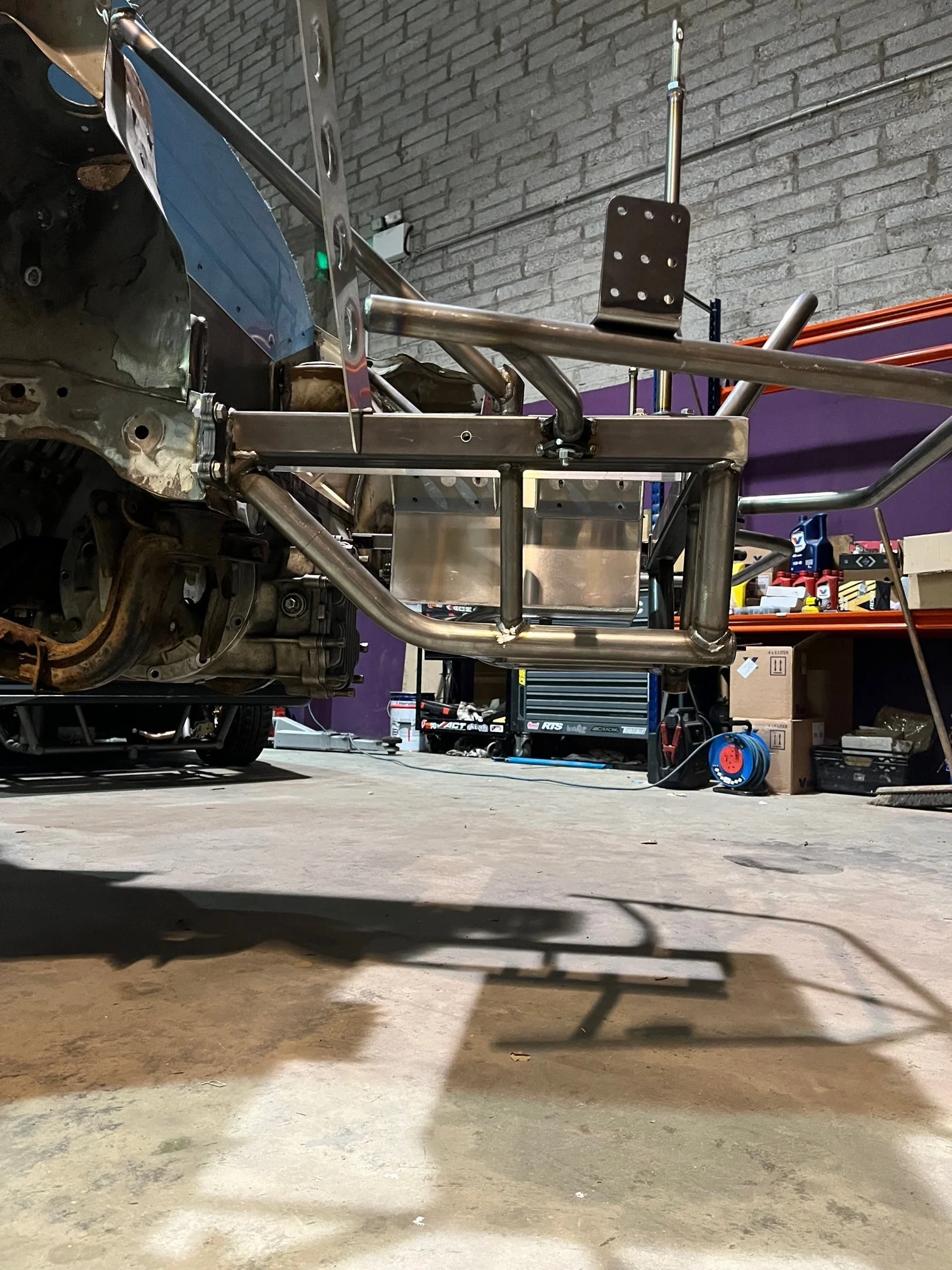

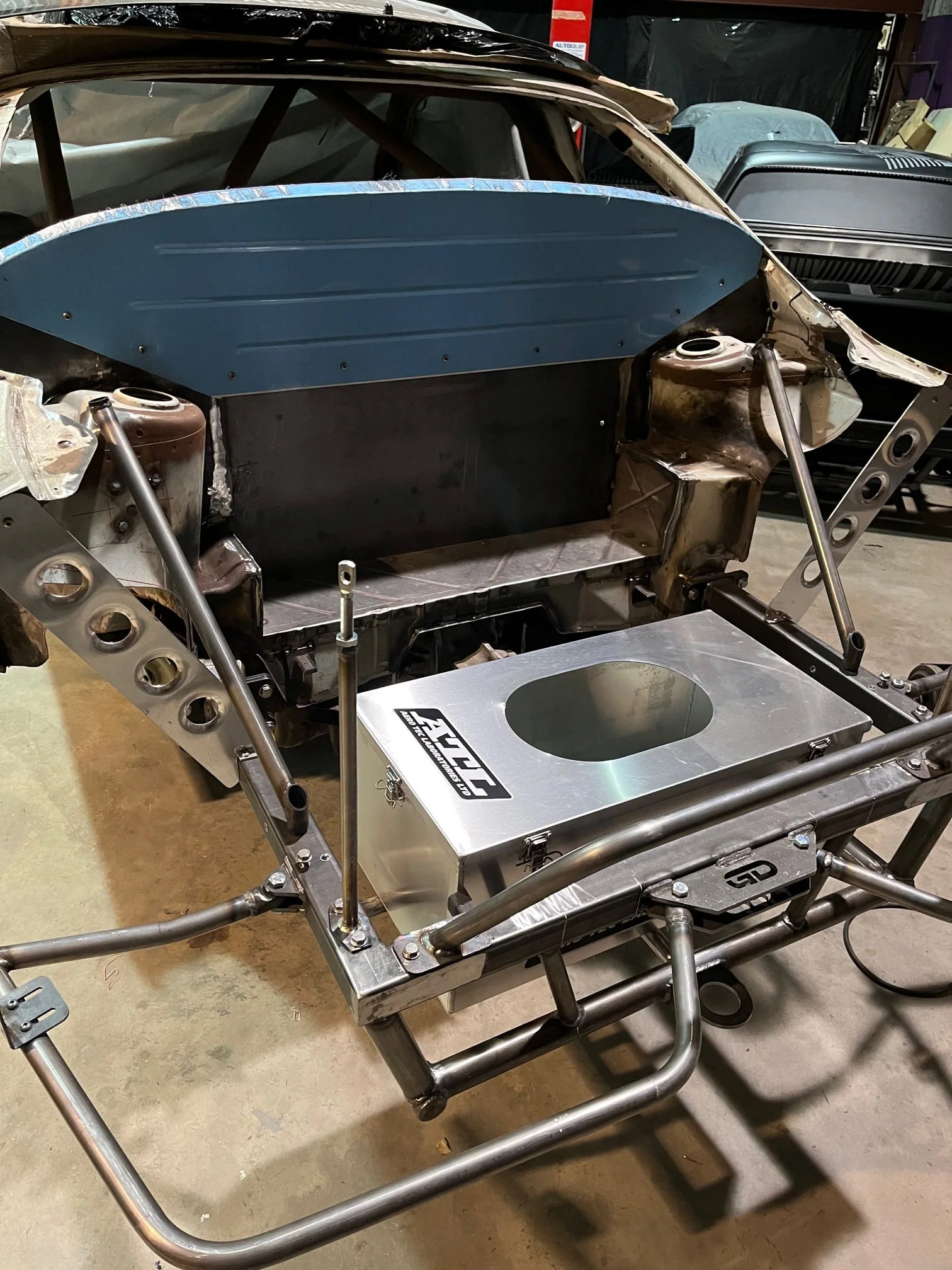

The lower round tube section features

- 38mm seamless CDS tube on the main outer structure

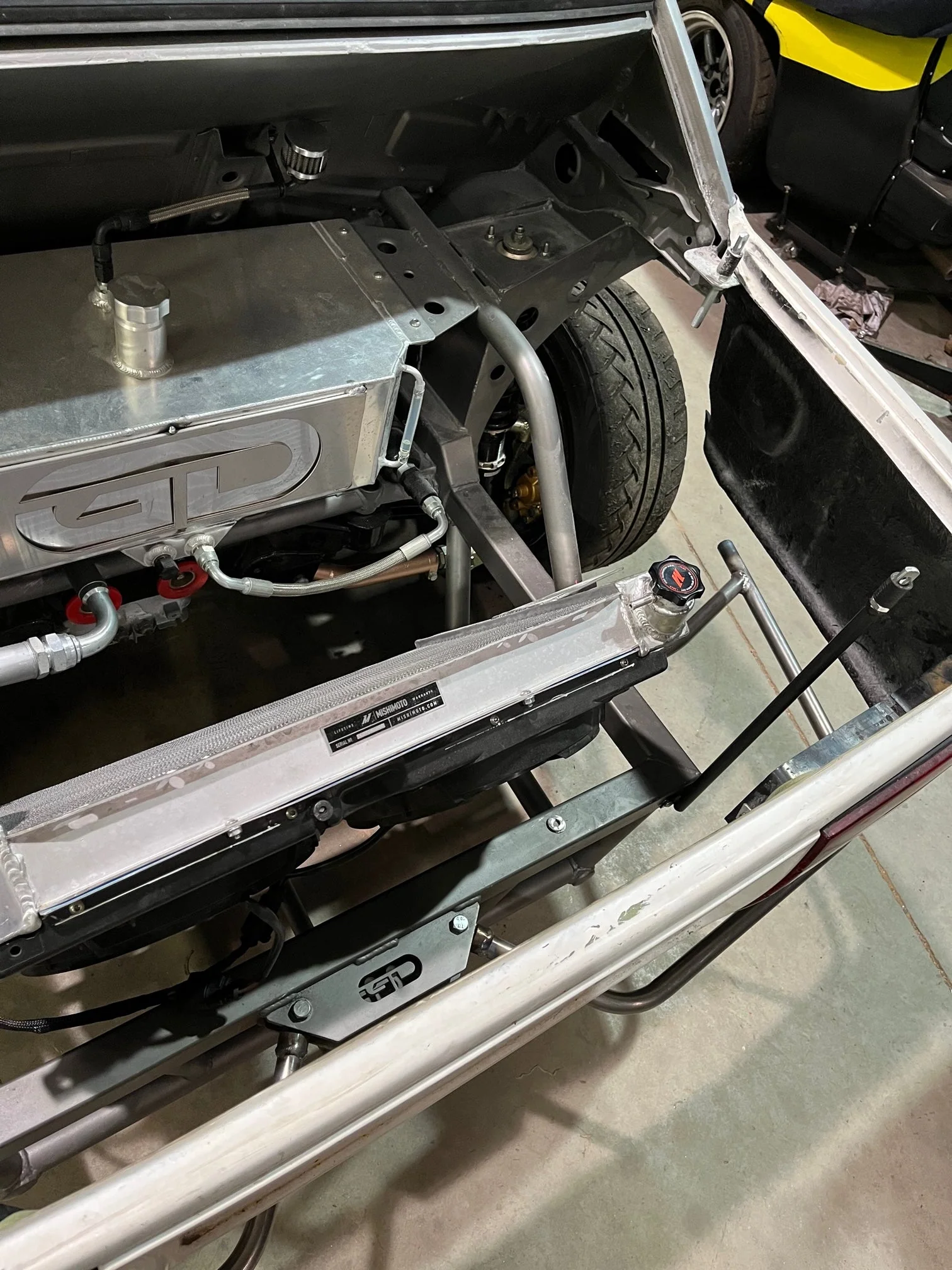

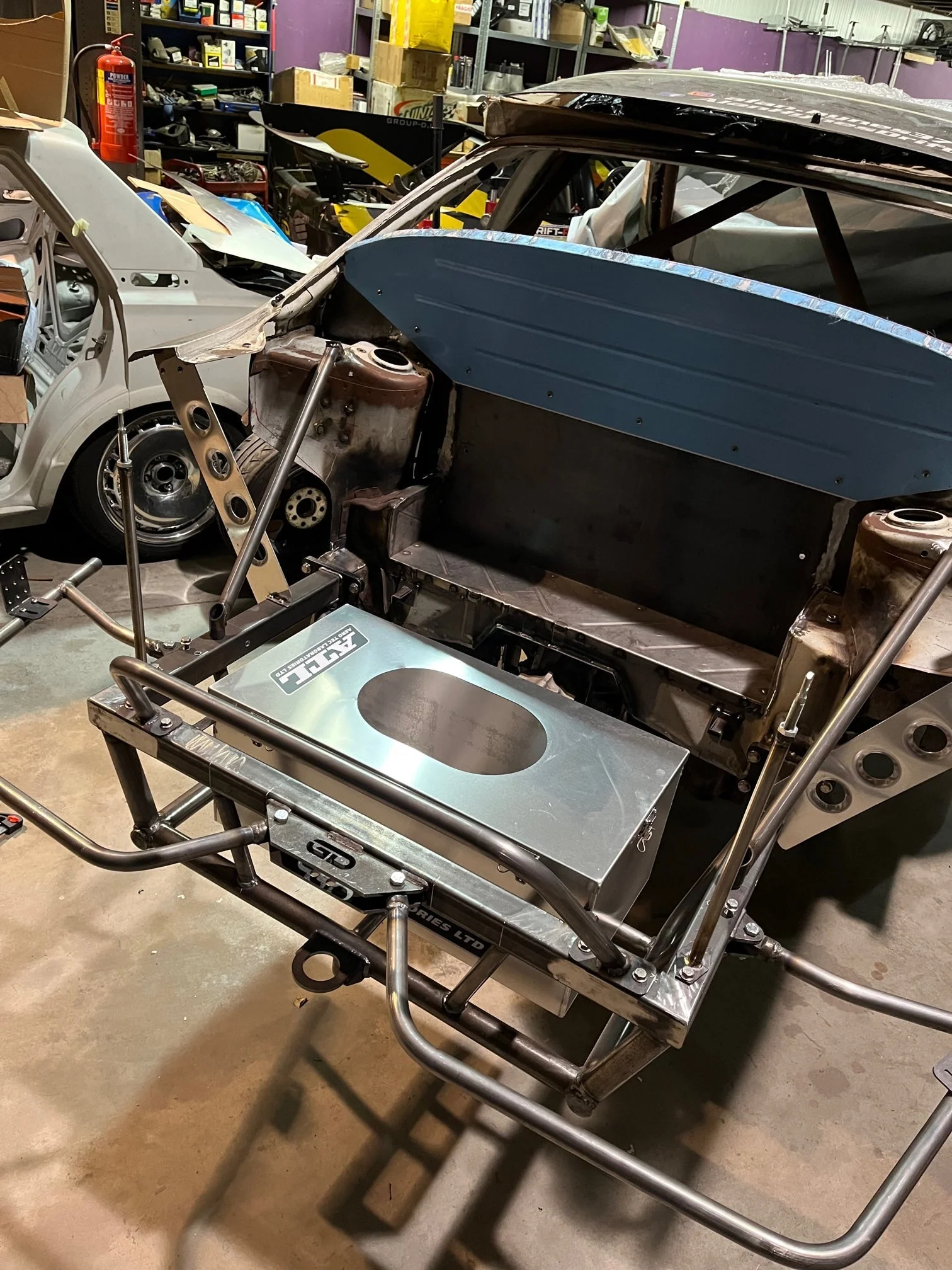

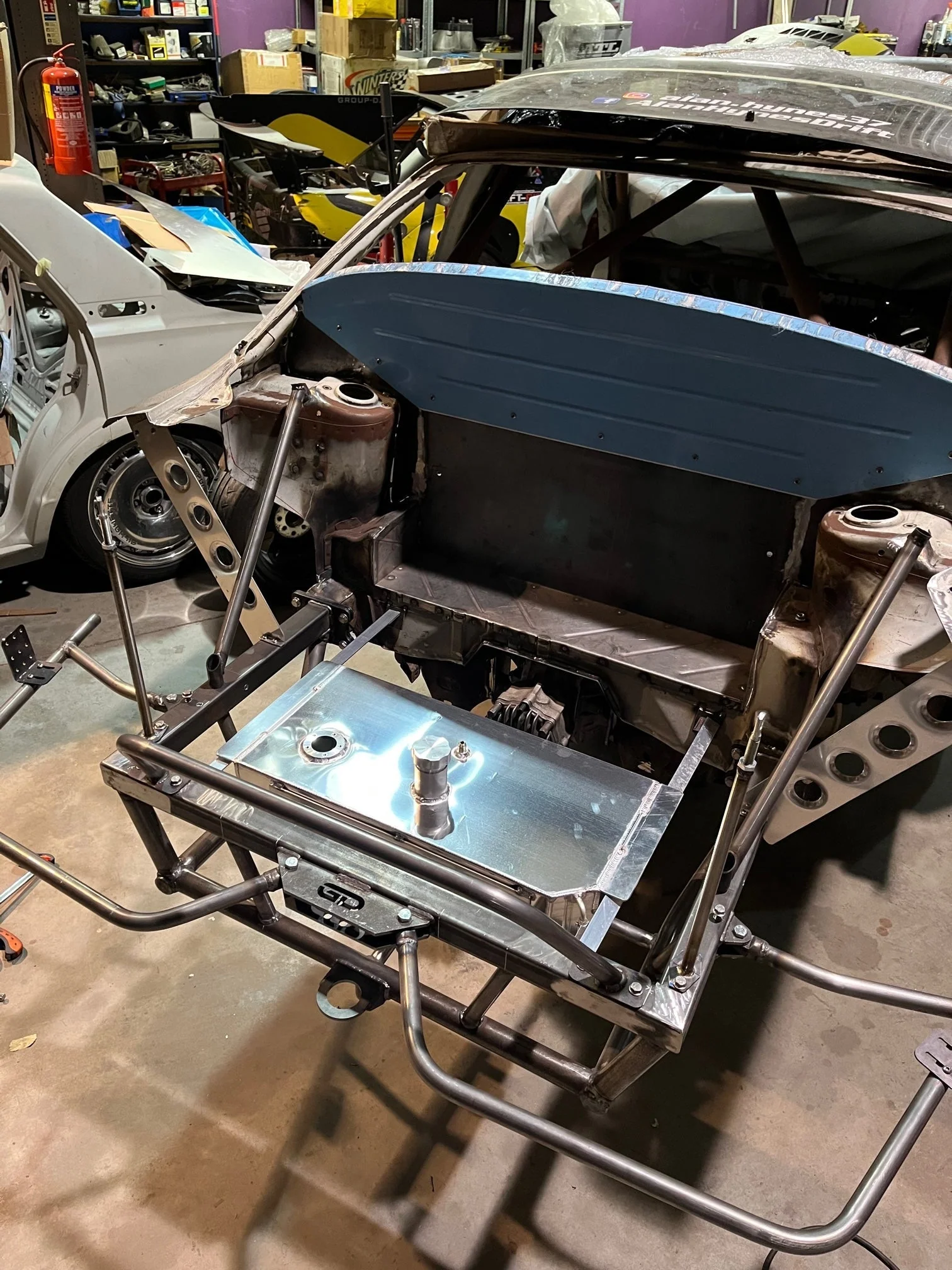

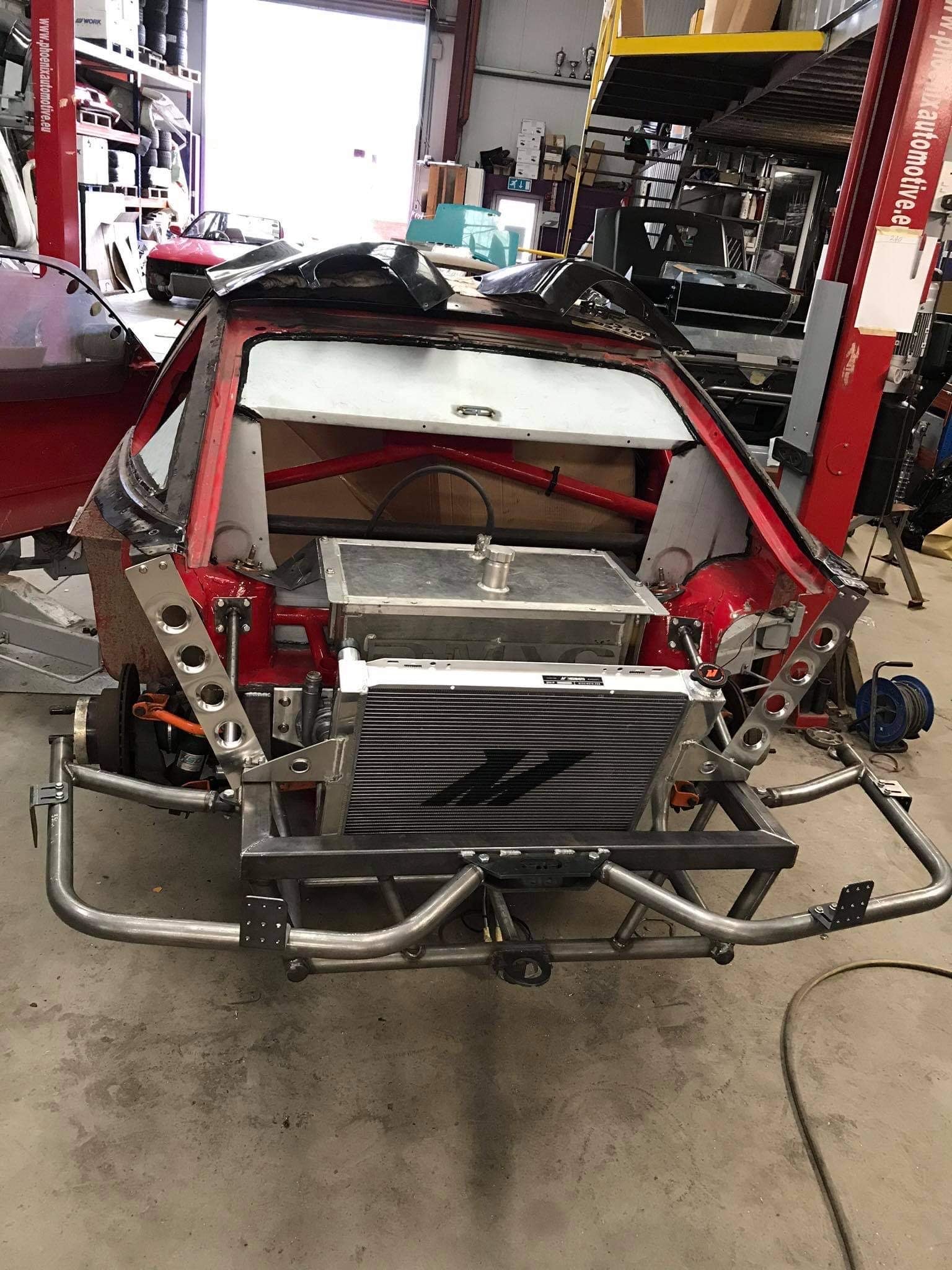

- 25mm seamless CDS tube is used on the central anti intrusion bars inside the main structure. This will prevent any foreign objects hitting the fuel cell or radiator

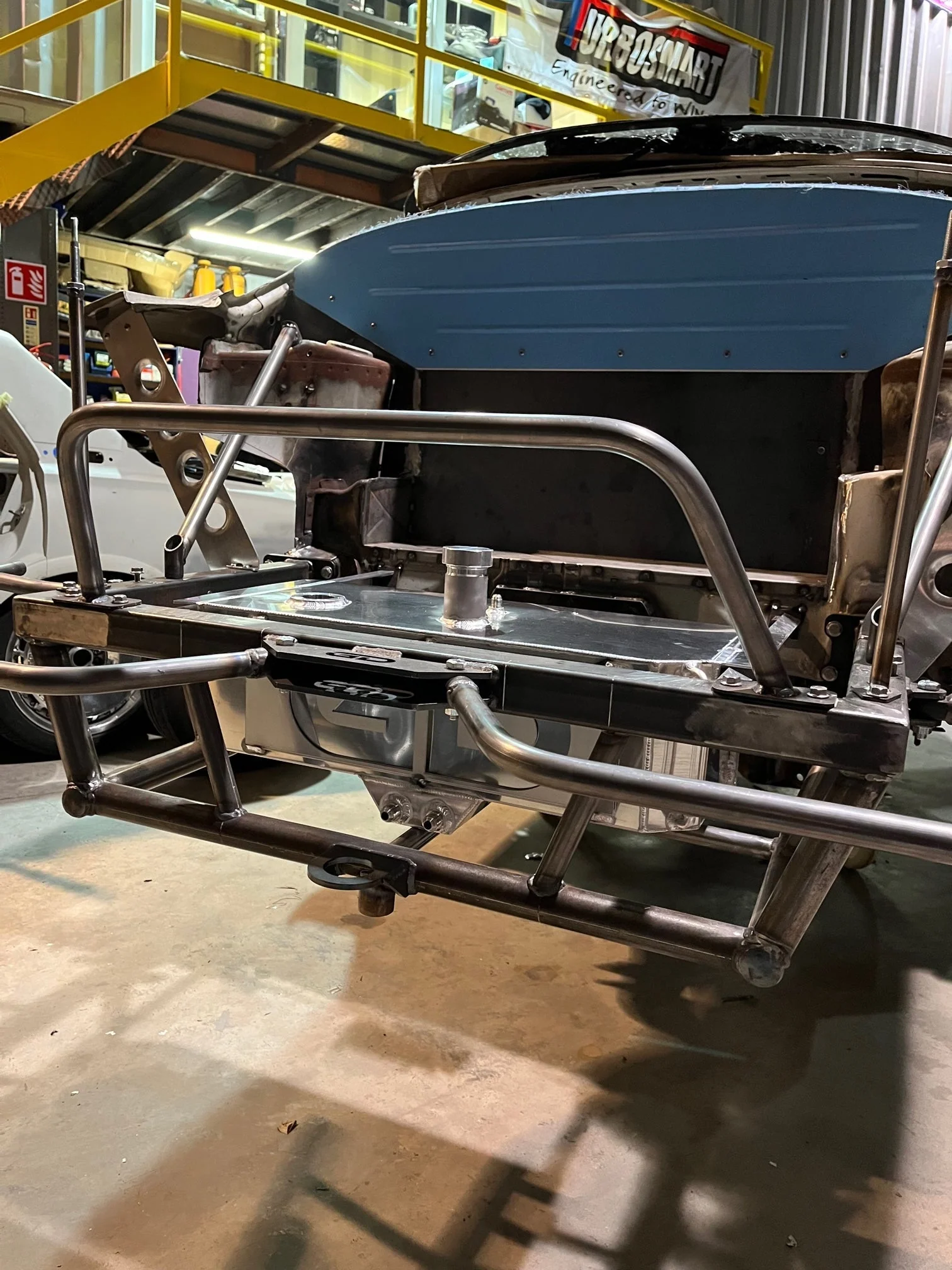

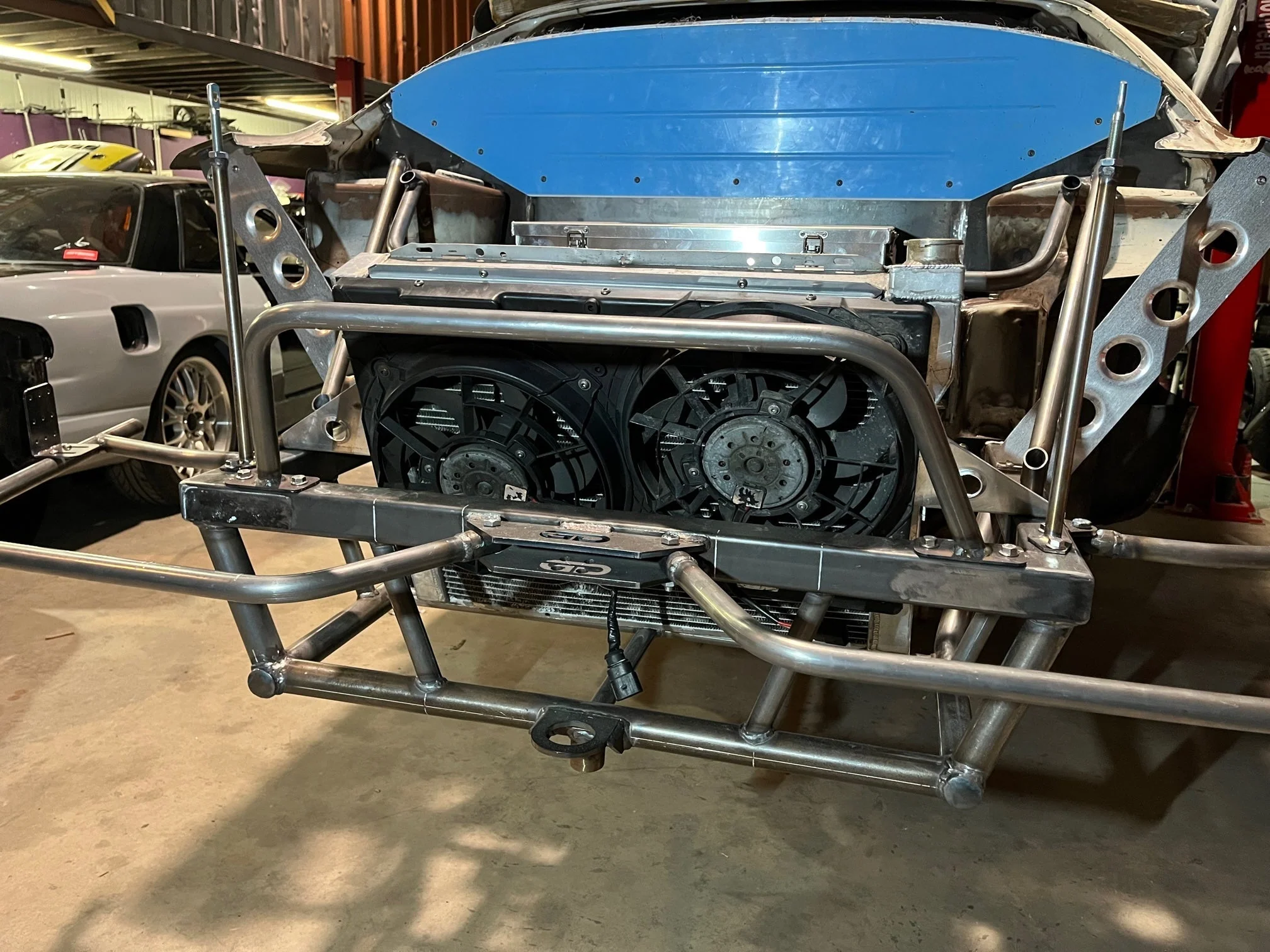

- 25mm lower "T" bar protects the fuel cell or radiator from underneath in the event of running over a large object or mounting the scenery

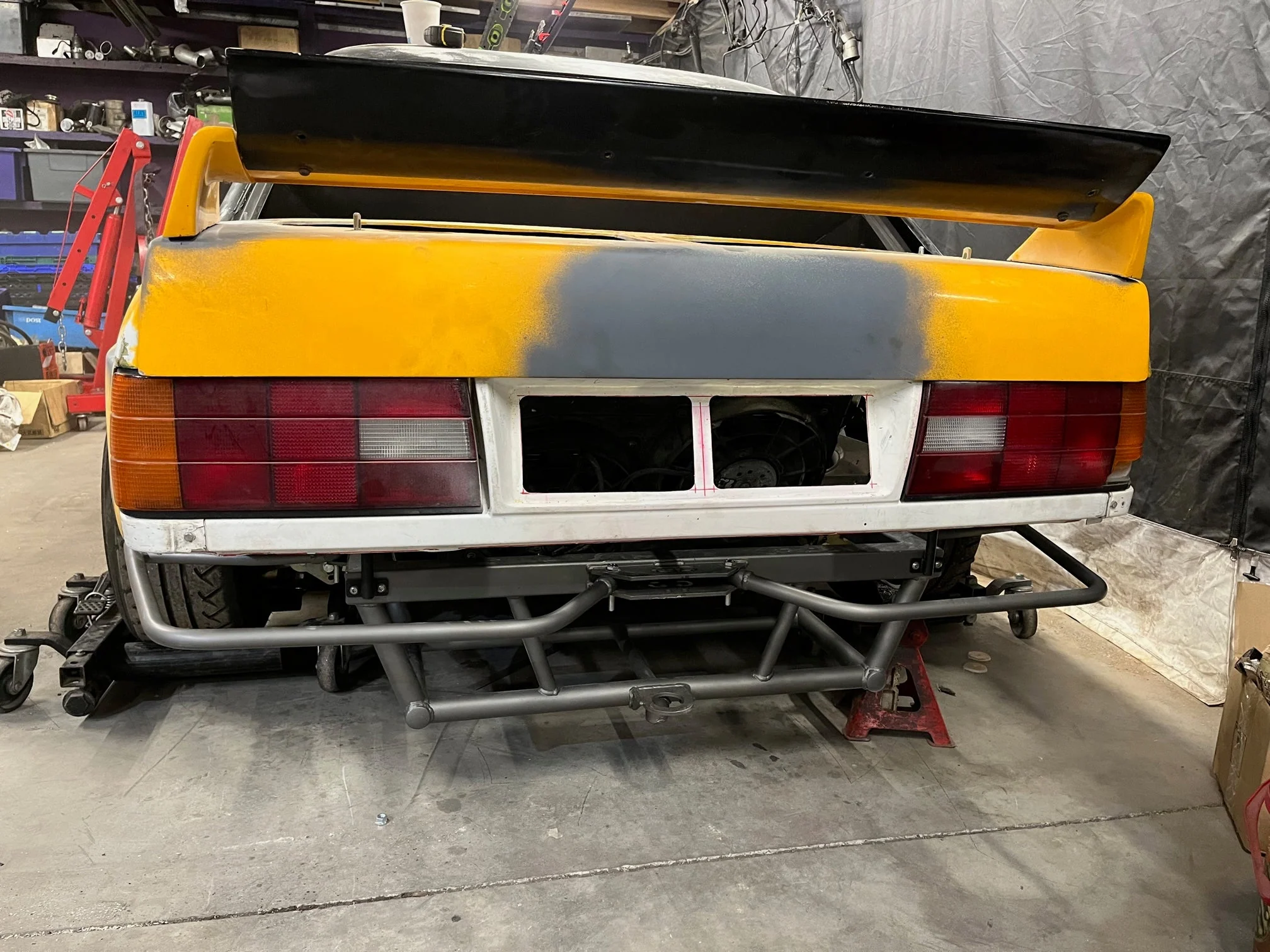

- Lower tow hook included for half rear bumpers

- Lower jacking point

- All tube ends finished with domed end caps



All fasteners included

High end stainless steel flange bolts used throughout
